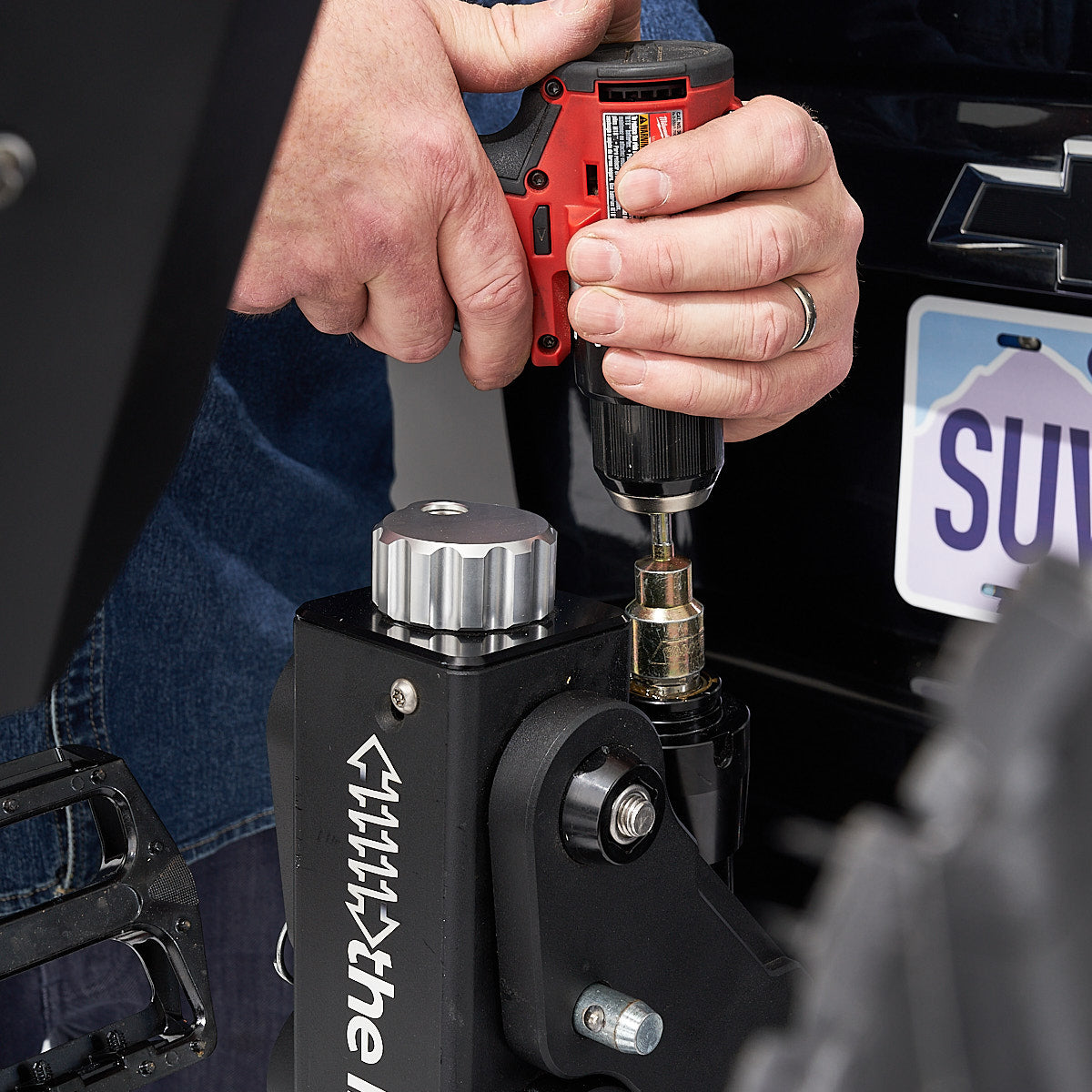

Using power drill to mechanically lower the rack

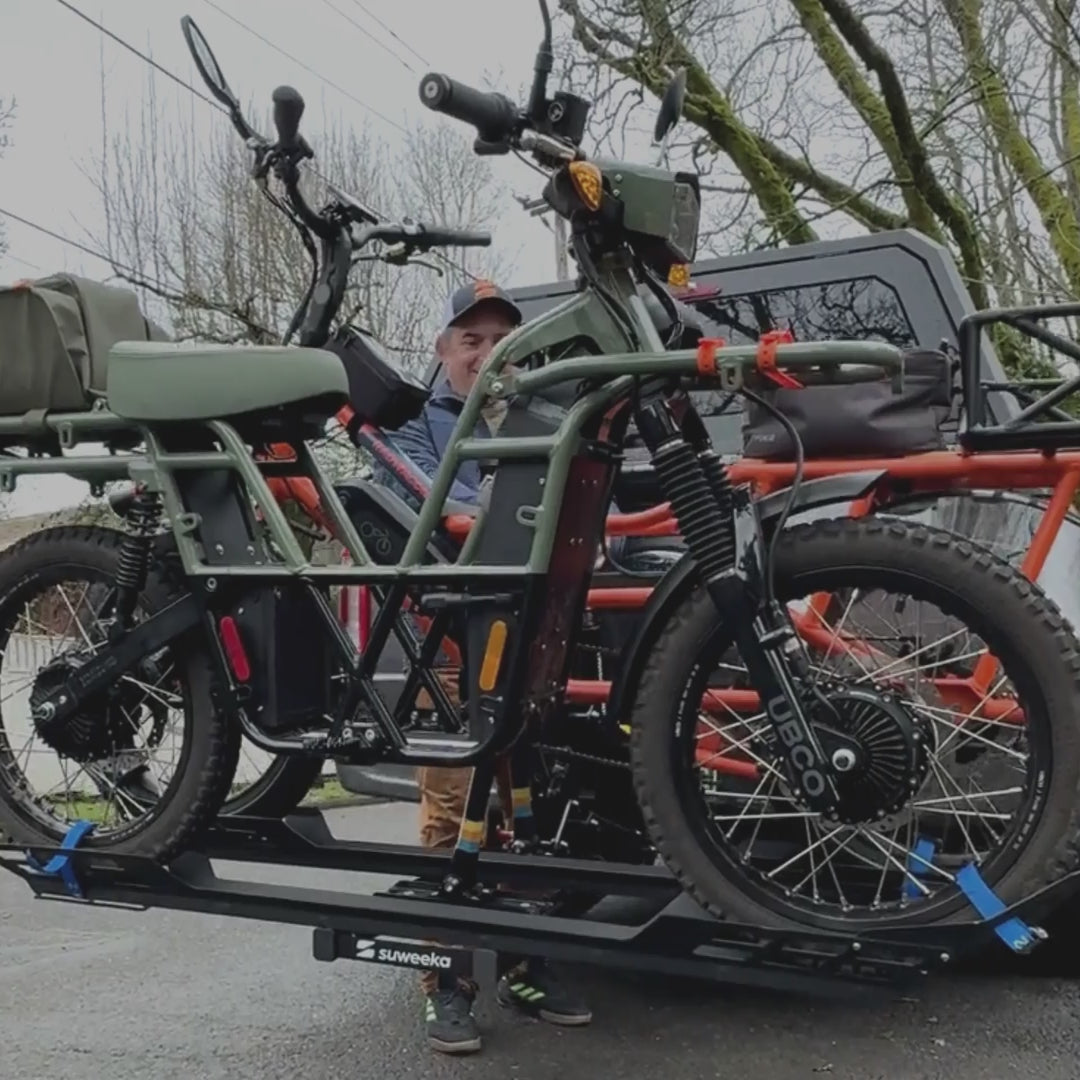

Two heavy e-bikes with baskets, and unusual frames secured in The Lifter

Made in the USA

The Lifter

$1,699.00

Raise and lower heavy loads of up to 240 pounds mechanically with the modular Lifter Rack. Tee Slot rails allow you to customize your Lifter Rack to accommodate your carrying needs.

When ordering your Suweeka lifter, we will need to know the length of quick connect hitch cleat you will need.

We need the length/distance, from the face of your vehicles 2 inch receiver to the trailing edge of your bumper, or spare tire if you are driving a vehicle with a rear door mounted spare tire.

Less than 0 inches or receiver sticks out past the bumper - order a 4 inch version.

0 - 2 Inches, order a 6 inch version

2 - 3 inches, order an 8 inch version

3 - 4 inches, order a 10 inch version

Over 4 inches, order a 12 inch version

Quick Connect Hitch Cleat:

4 inch

Variant

Warranty & Returns

Return shipping costs are non-refundable and deducted from product refunds. Lifetime Warranty: Suweeka products are built to last a lifetime, with replacement parts available for consumables.

Shipping

We ship to the contiguous lower 48 states, and the District of Columbia within 2-10 business days via UPS. Customers in Hawaii, Alaska or Canada should contact us to arrange shipping.

The Lifter

$1,699.00

2 inch Hitch Receiver for Cars + RVS

240 pound Capacity

Use your own trays or do a custom build

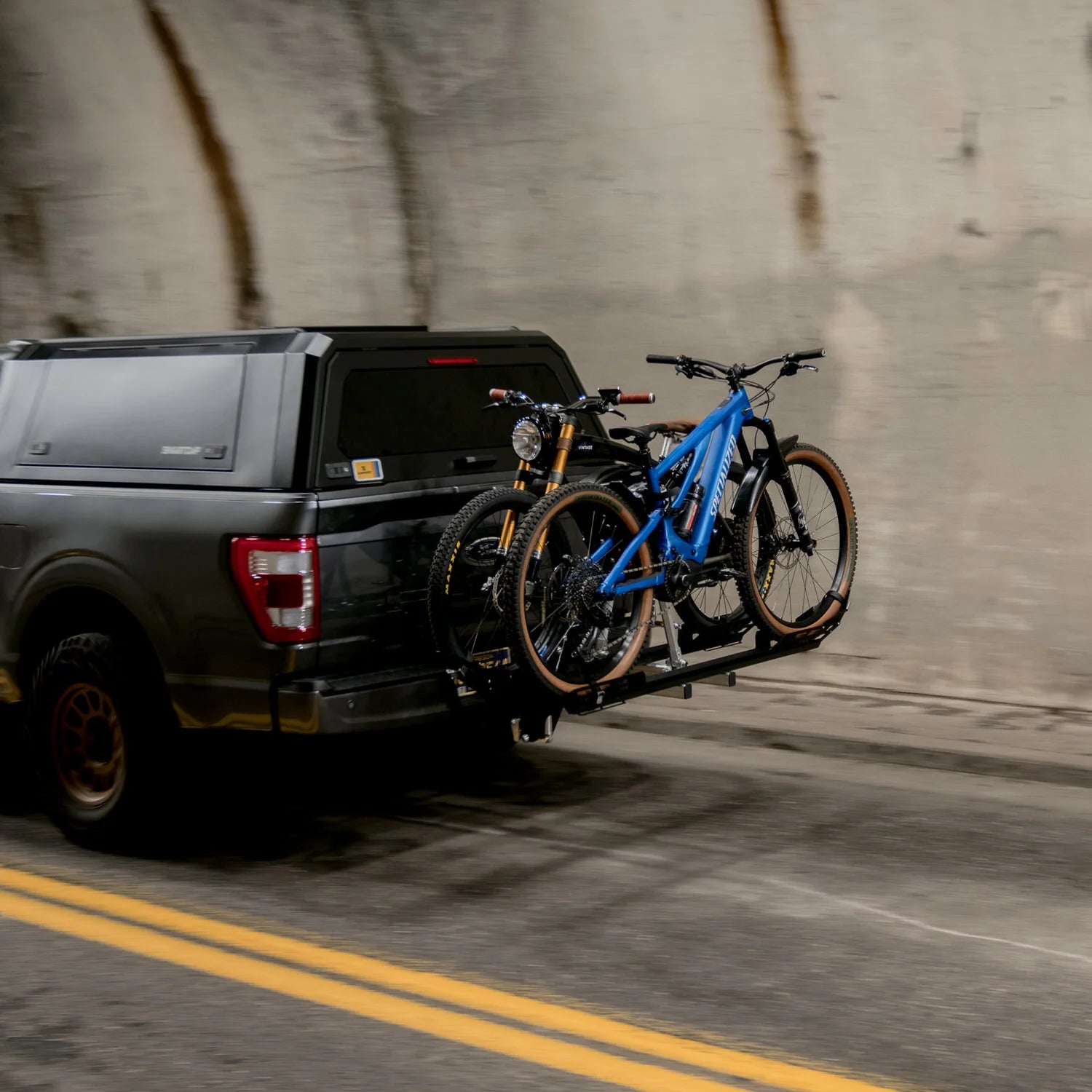

E-Bike Rack for Effortless and Secure Transit

Say goodbye to the struggle of lifting heavy bikes and managing bulky rack setups. Our modular design accommodates third party trays and DIY solutions. Alternatively, our bike mounts accommodate most bikes on the market. Easy installation, removal, and storage means more time on the trails.

Includes

The Lifter
Socket Adaptor

Features

Two-piece design for easier lifting, installation and storage

240 pound capacity, 120 pounds per bike tray

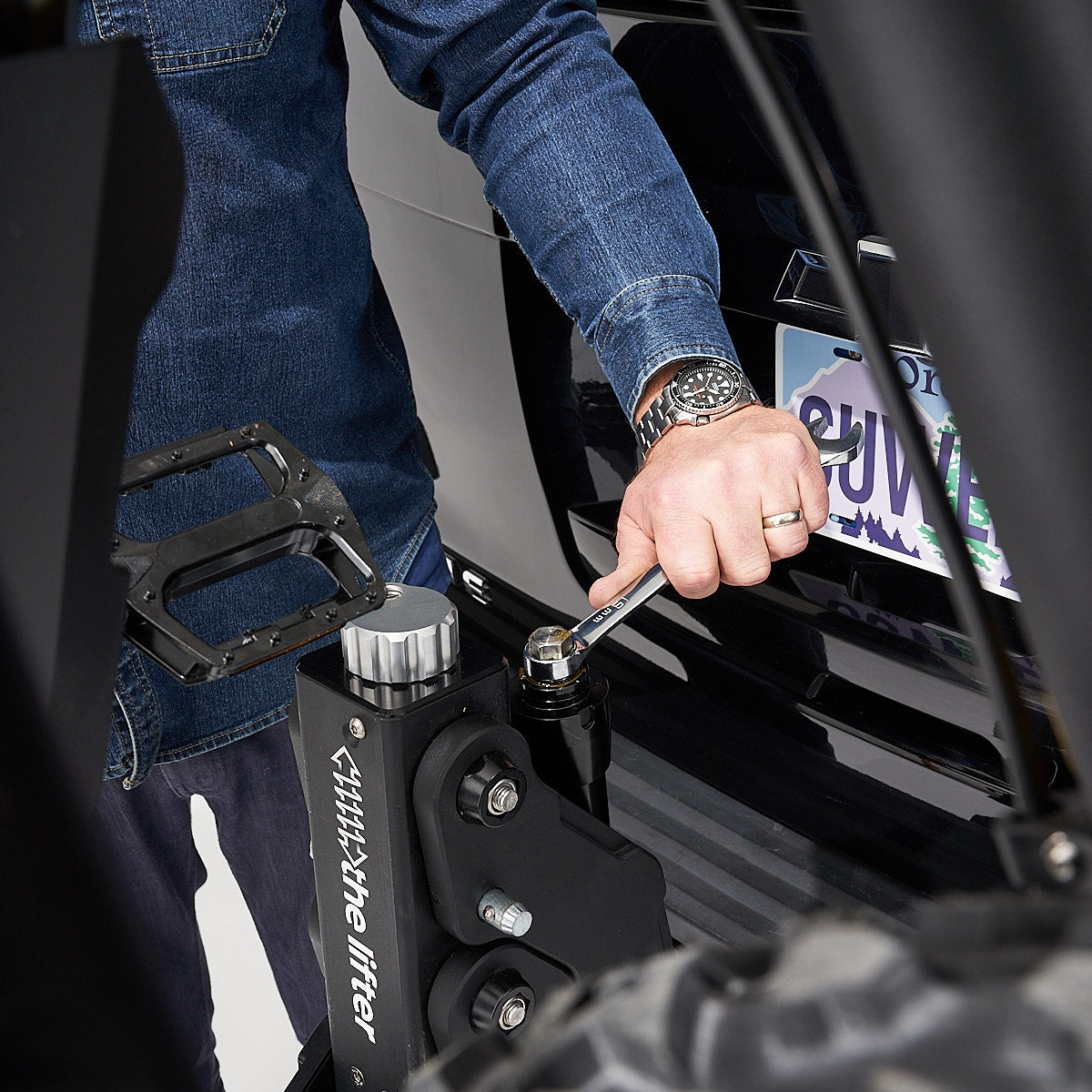

Mechanical lifting with hand crank or ¾ inch socket adaptor and drill

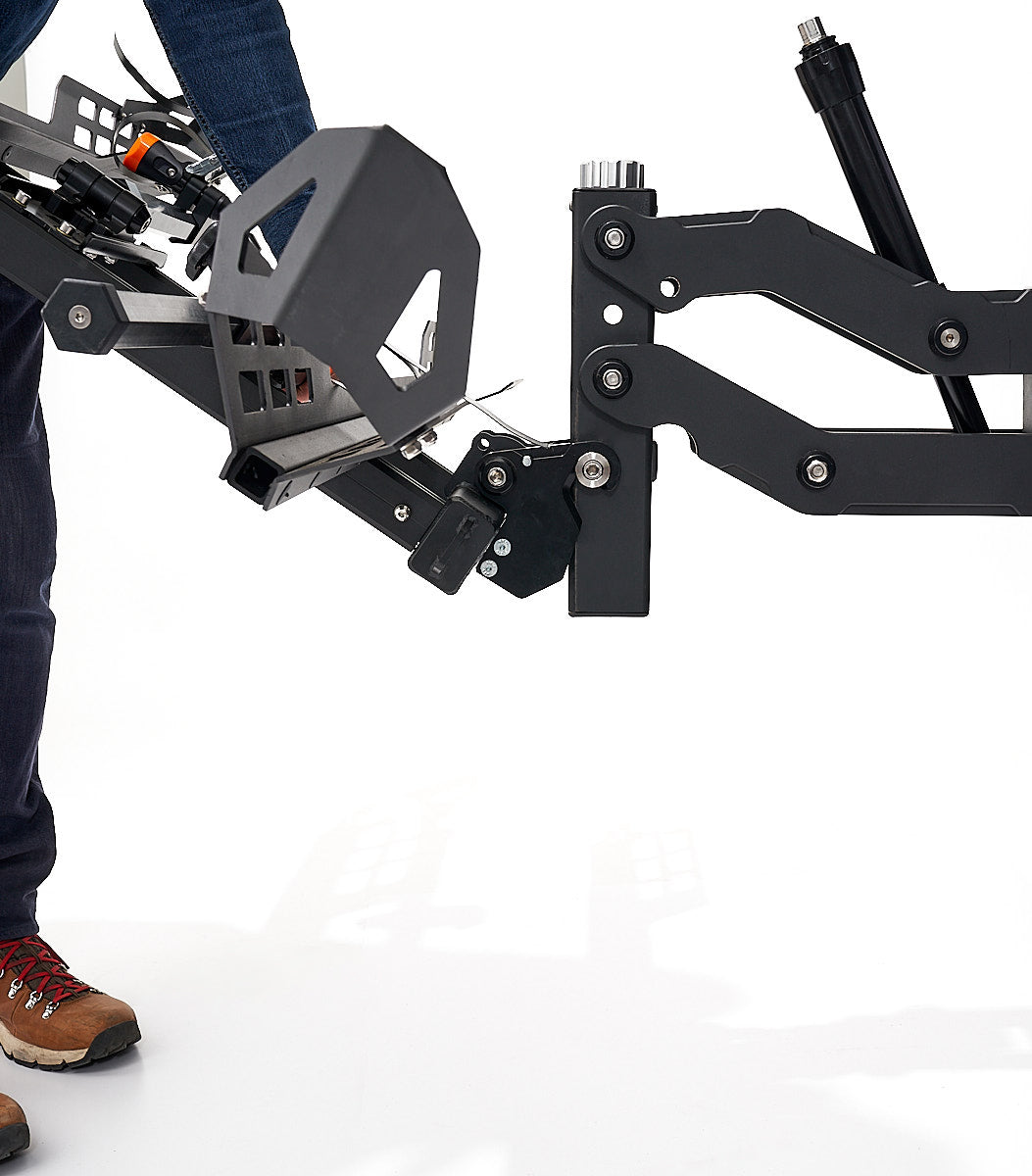

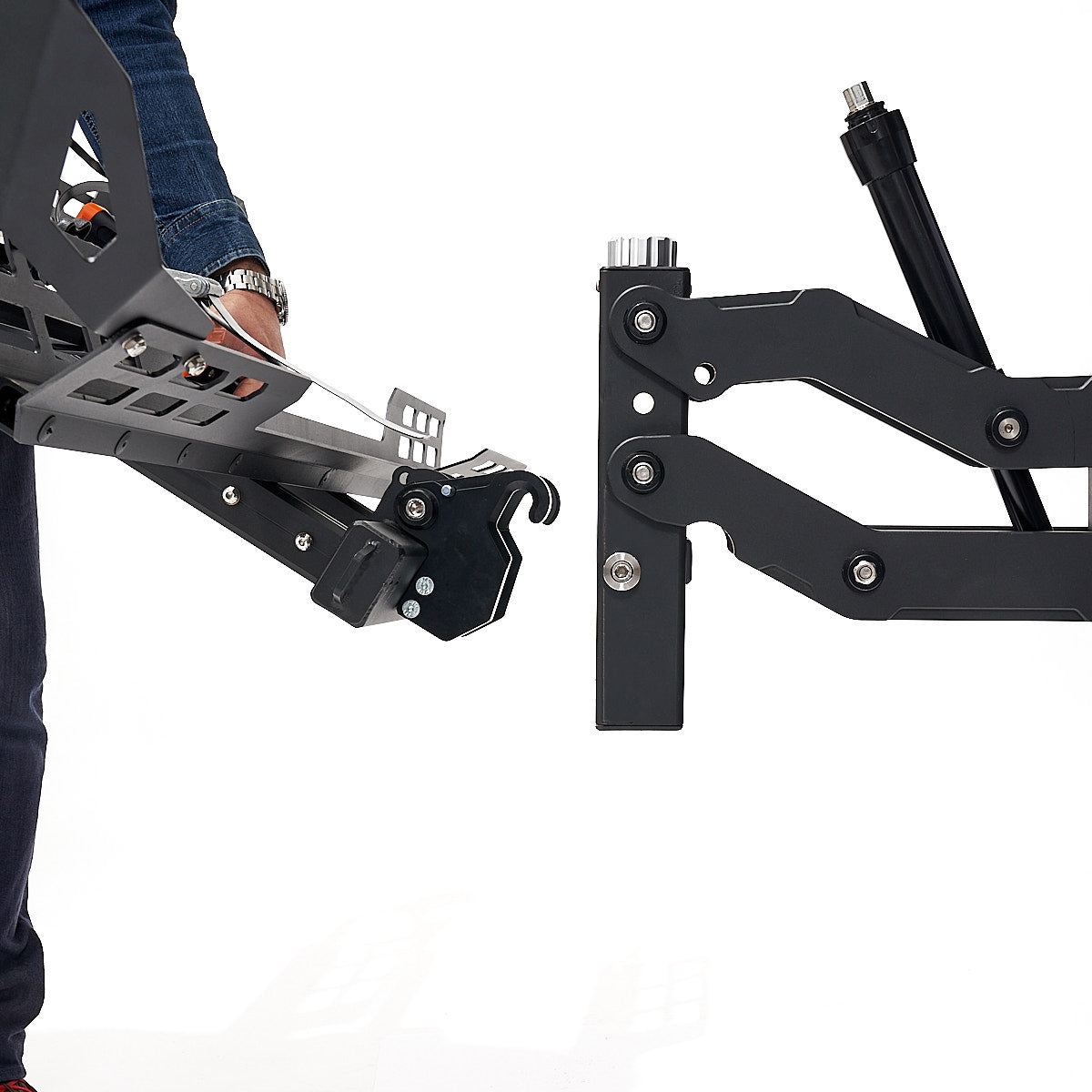

Quick connect separates Carriage from The Lifter quickly

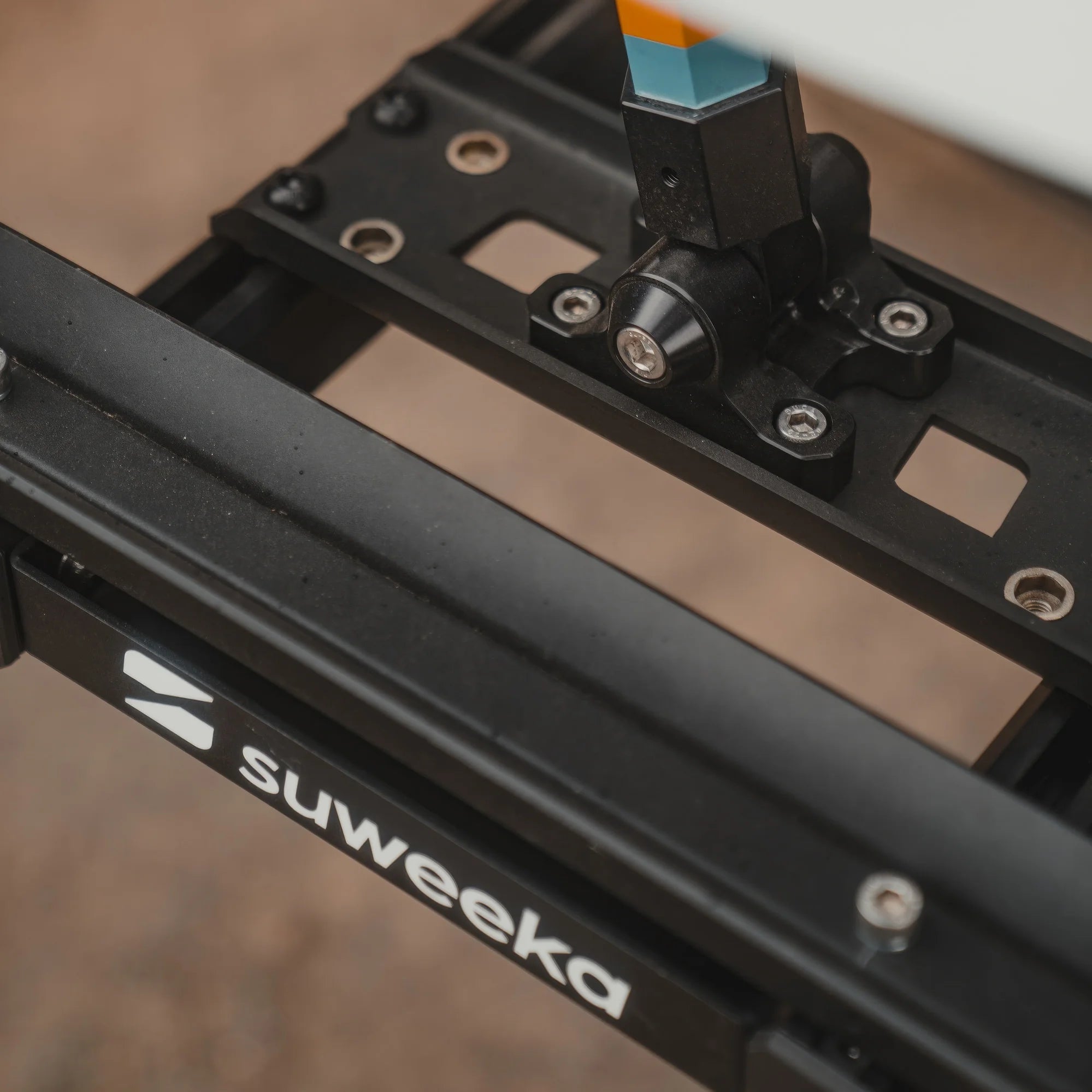

Stabilizer pivots 180° and coupler adjusts for various frame tube diameters and accessories

Carriage arms feature channels for versatile and DIY accessory mounting

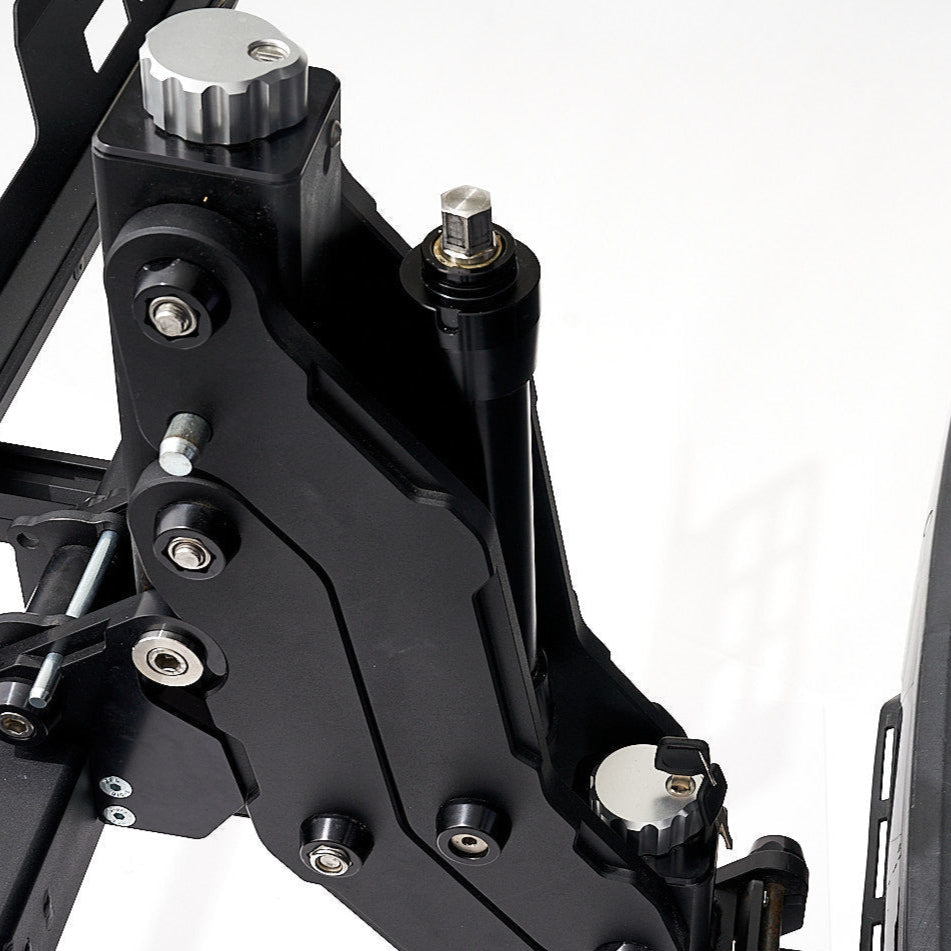

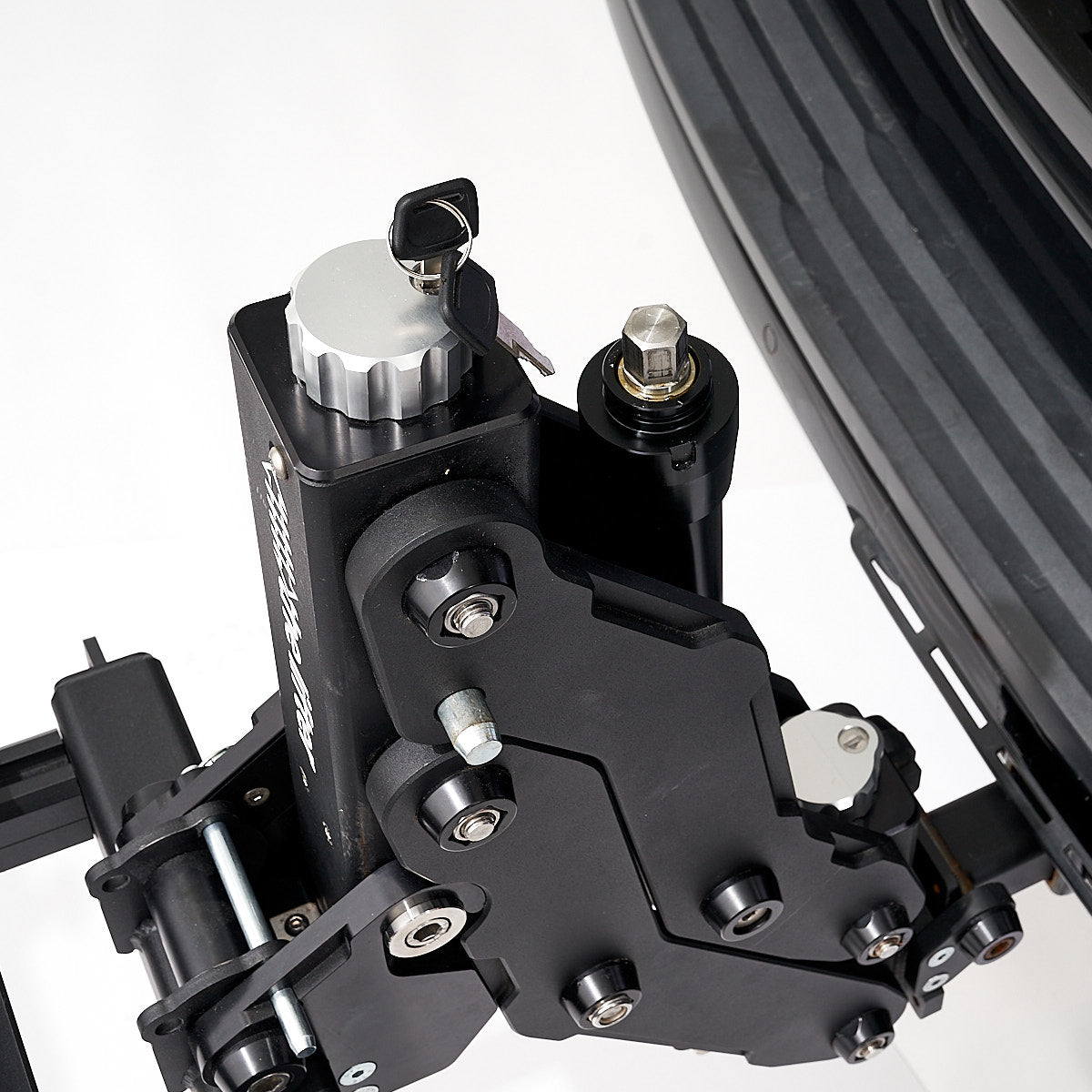

Securely locks to your vehicle, additional security can be attained with user provided cable and U-Lock

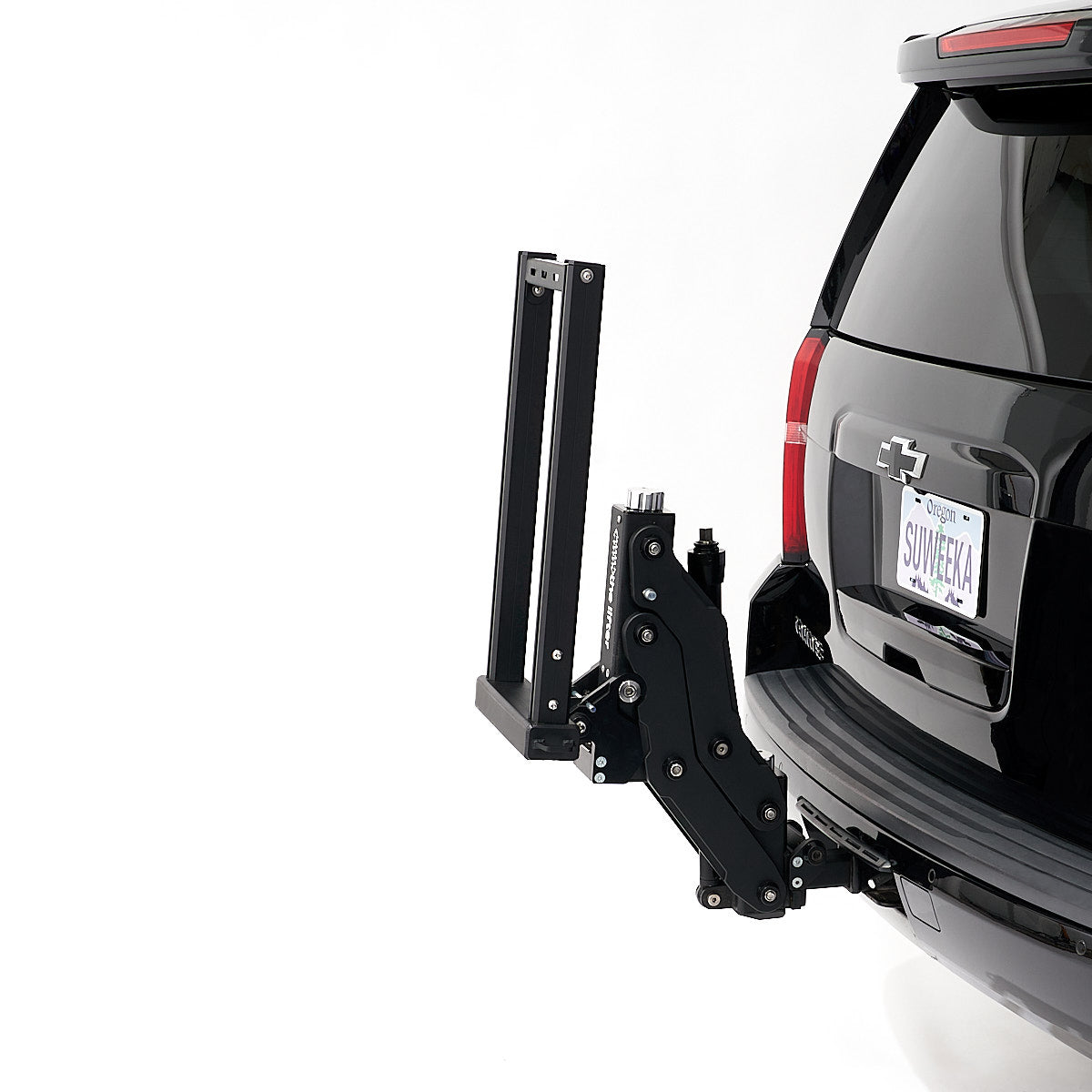

Folds when not in use, by pulling the release pin and lifting the rack locks into position at 90°

Specifications

Load Capacity	240 pounds
Max Bike Weight	120 pounds
Max Number of Bikes	2
Hitch Receiver Size	2 inches
Lifter Drop	20 inches
Lifter Rise	Roughly 7 inches above the bottom of your receiver
Total Rack Weight	59 pounds
Materials	Anodized Billet Aluminum, Powder Coated Steel, Stainless Steel

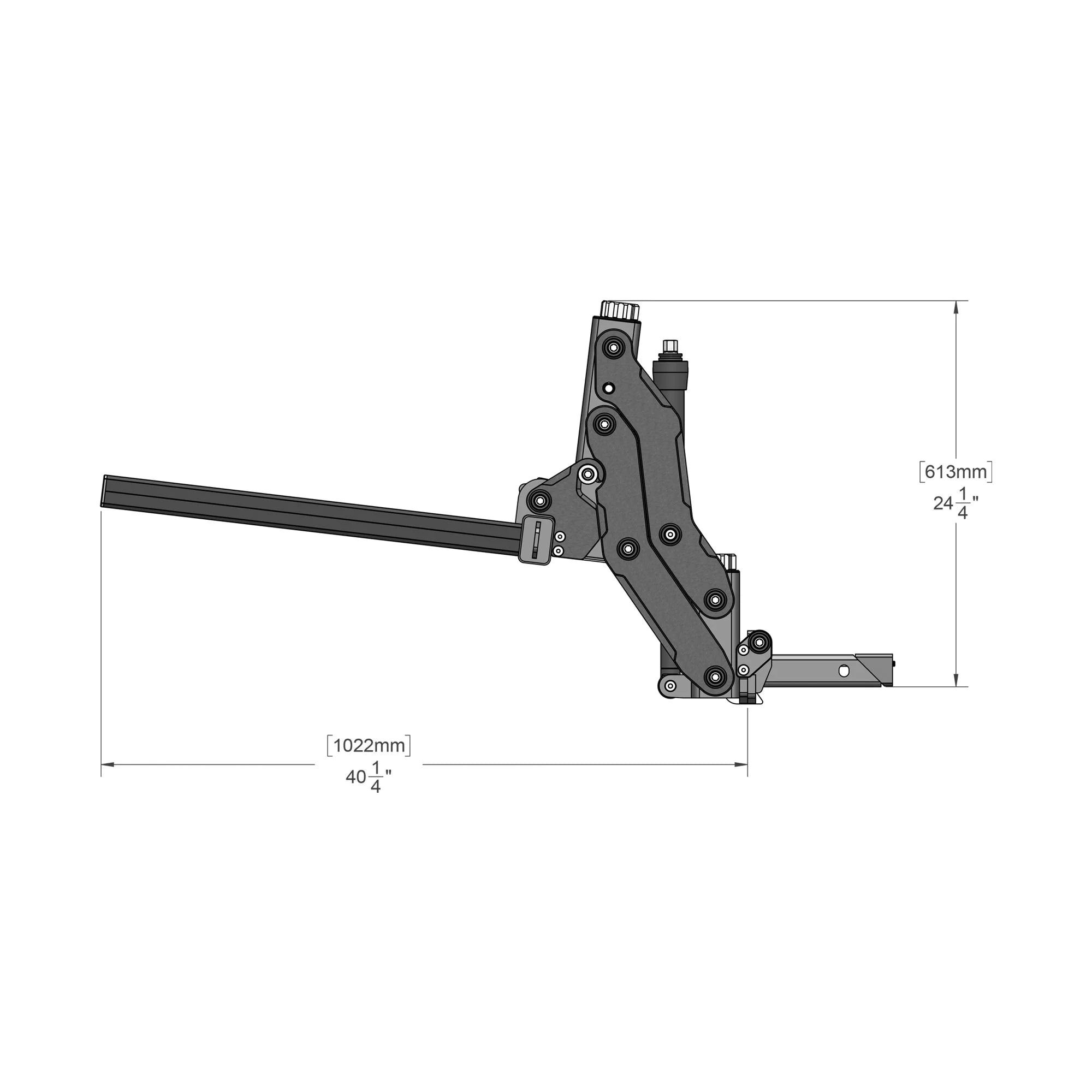

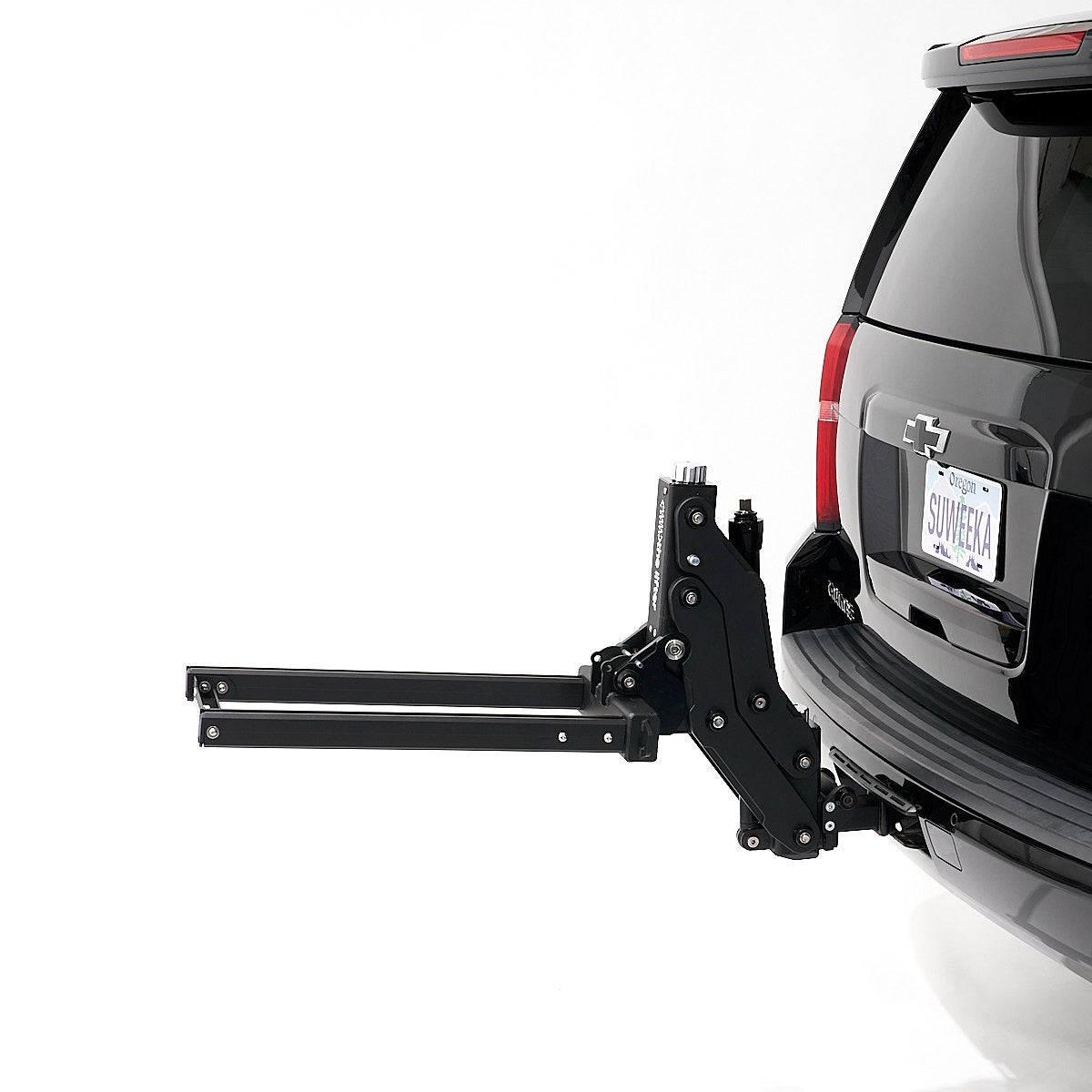

Deployed and in Transit Position Dimensions	17 inches deep x 16 inches wide 41 inches bottom of receiver to top of carriage arms

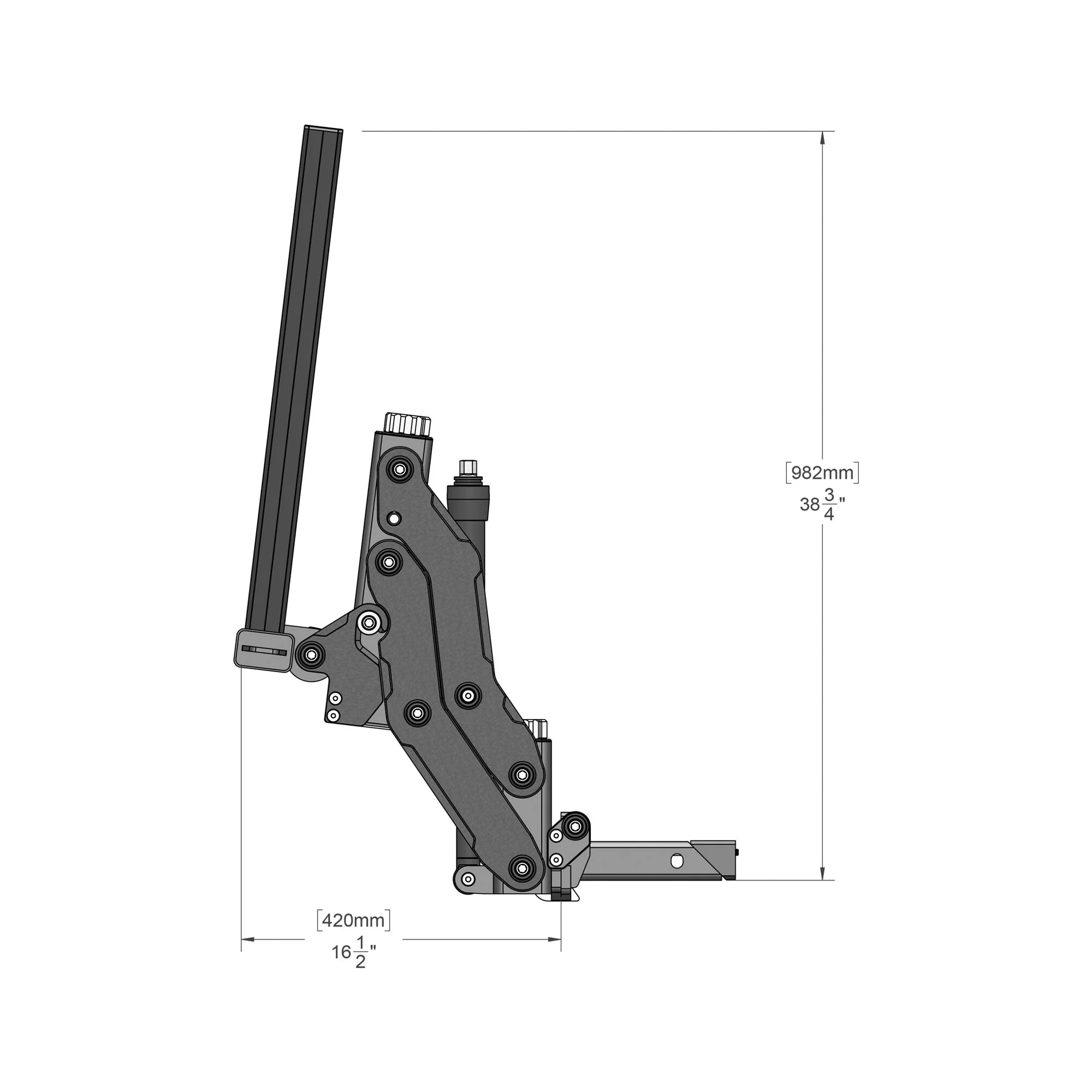

Folded Dimensions	17 inches deep x 16 inches wide 41 inches bottom of receiver to top of carriage arms
Approved for RV	Yes, Class A, B and C
Max Wheel Base	58 inches
Max Tire Width	5 inches
Max Wheel Size	29 inches & 700cc

The Lifter
Socket Adaptor

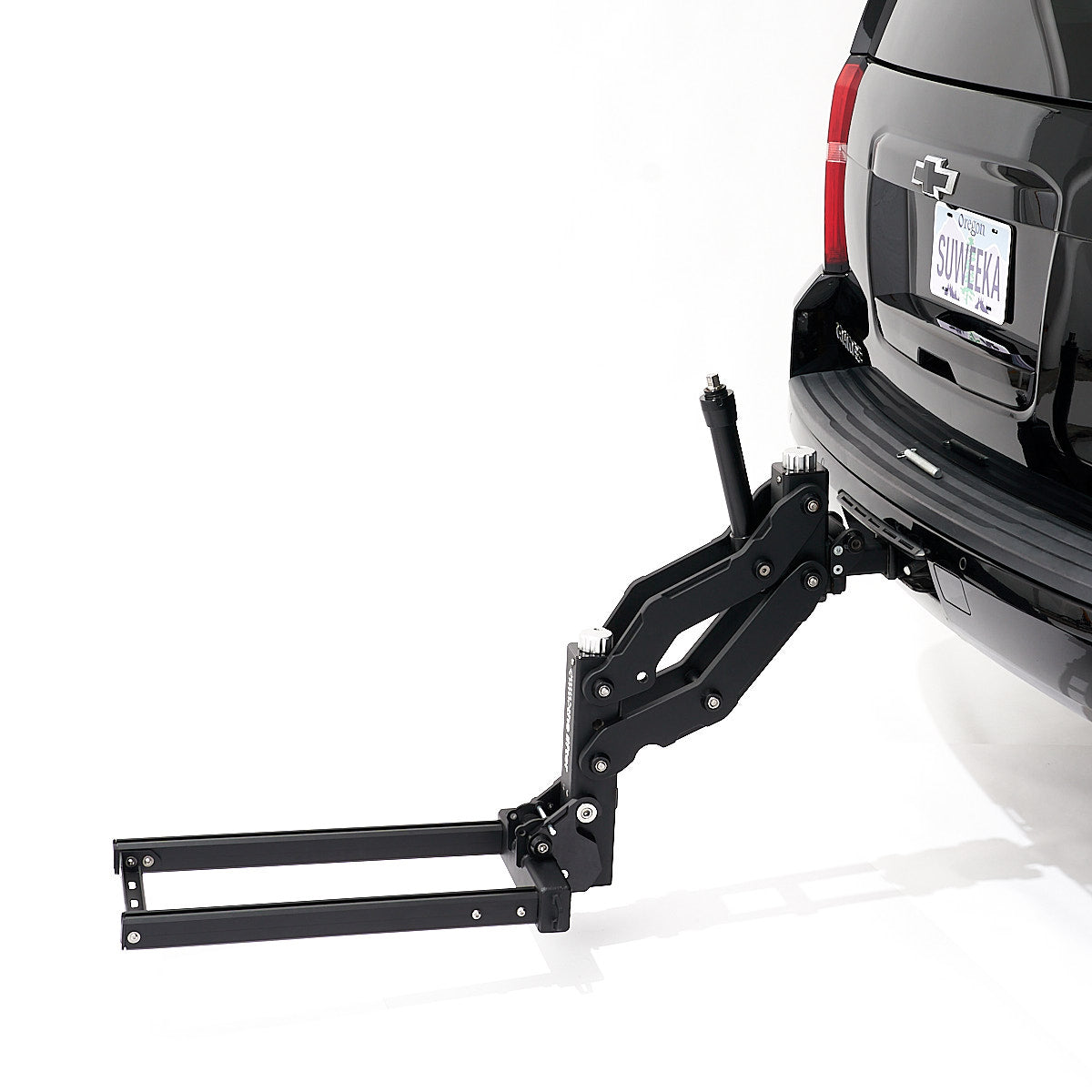

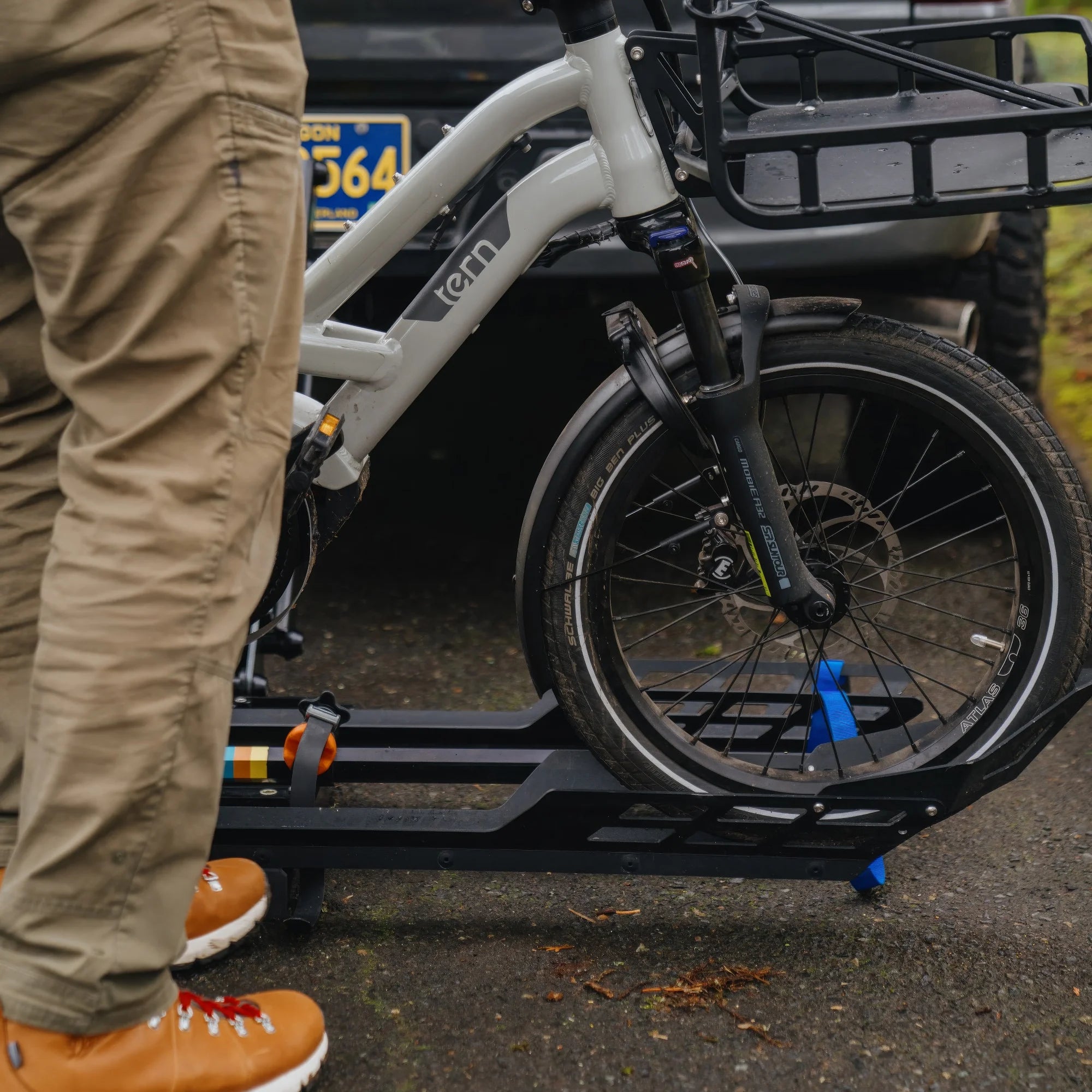

The Lifter rack lowered to the ground, with bike ready to roll off

Raises and lowers 240 LBS, so you don't have to

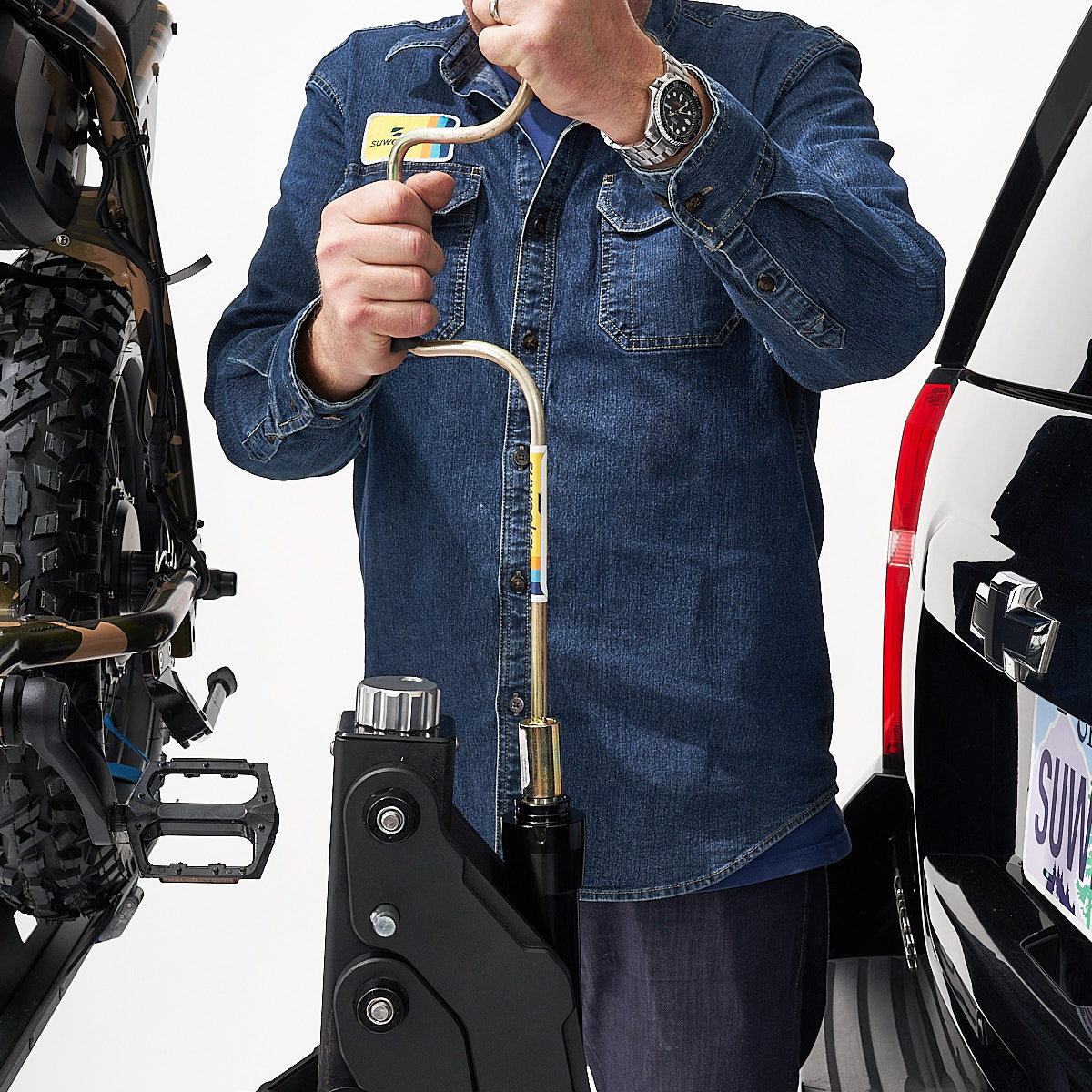

Use your power drill or the hand crank provided to use the mechanical lifting. Our bike tray sits flat on the ground for most vehicles, enabling effortless rolling on and off.

Use your own bike trays, or opt for a custom build

T-slot extrusions offer flexibility to use your own bike trays or opt for custom-tailored carrying solutions.

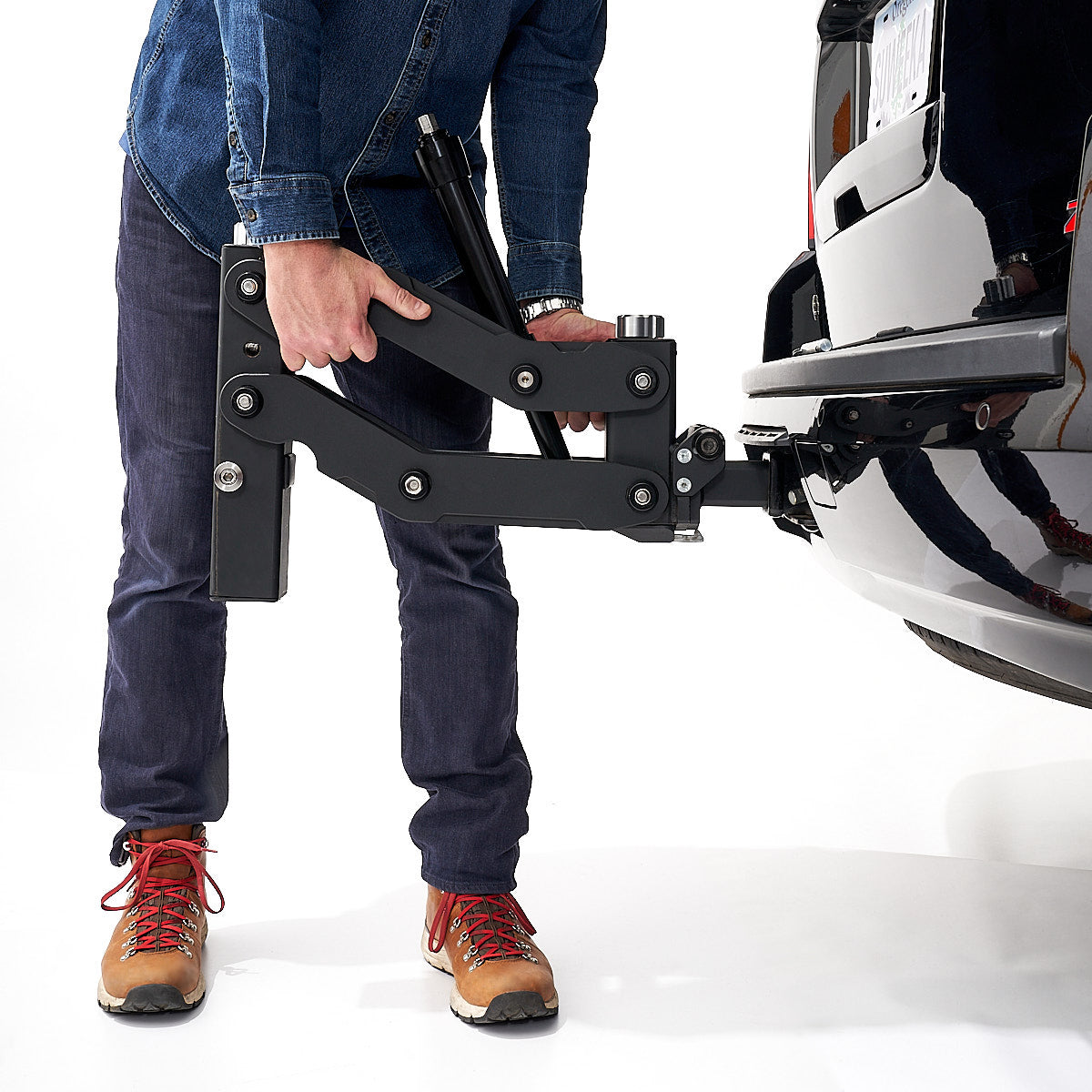

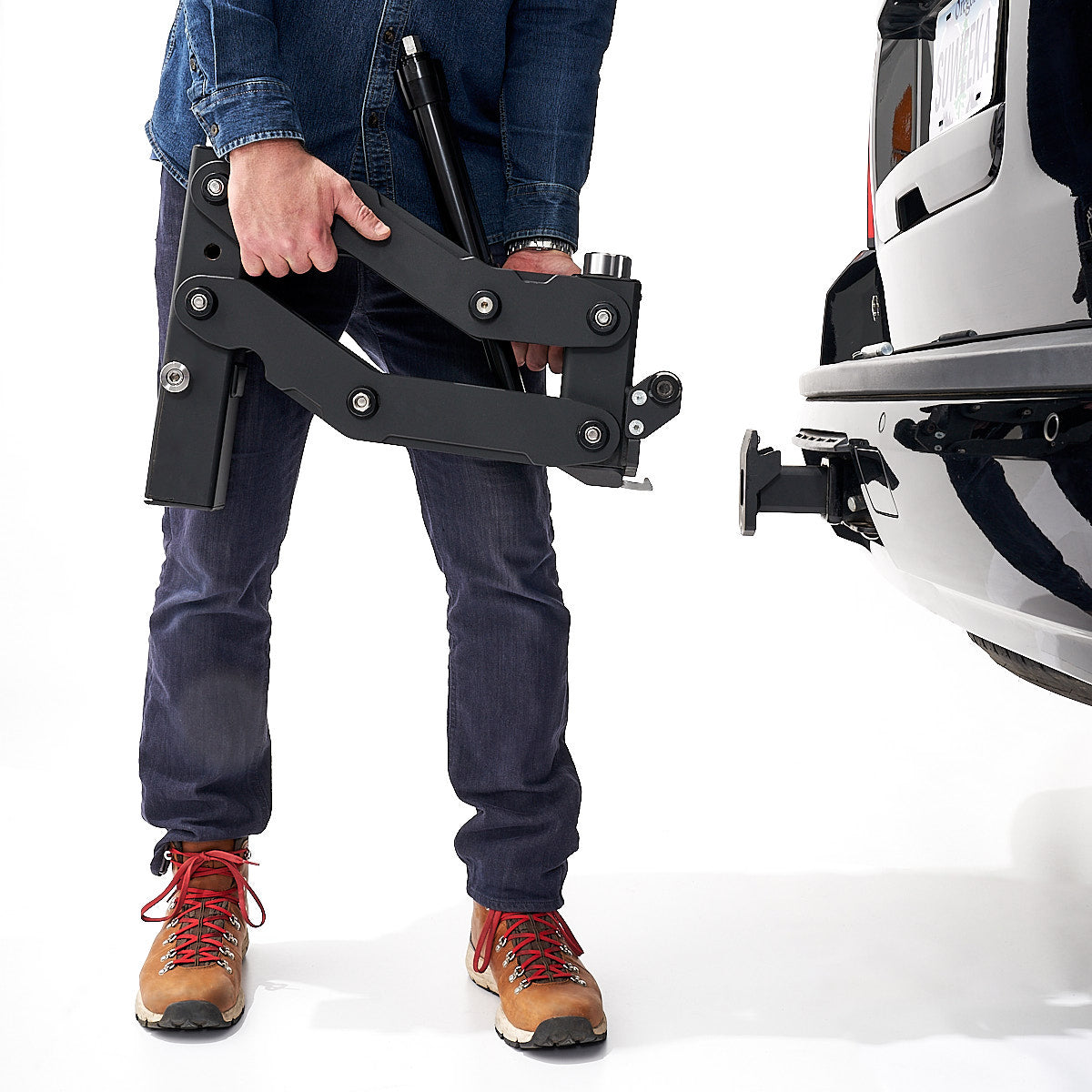

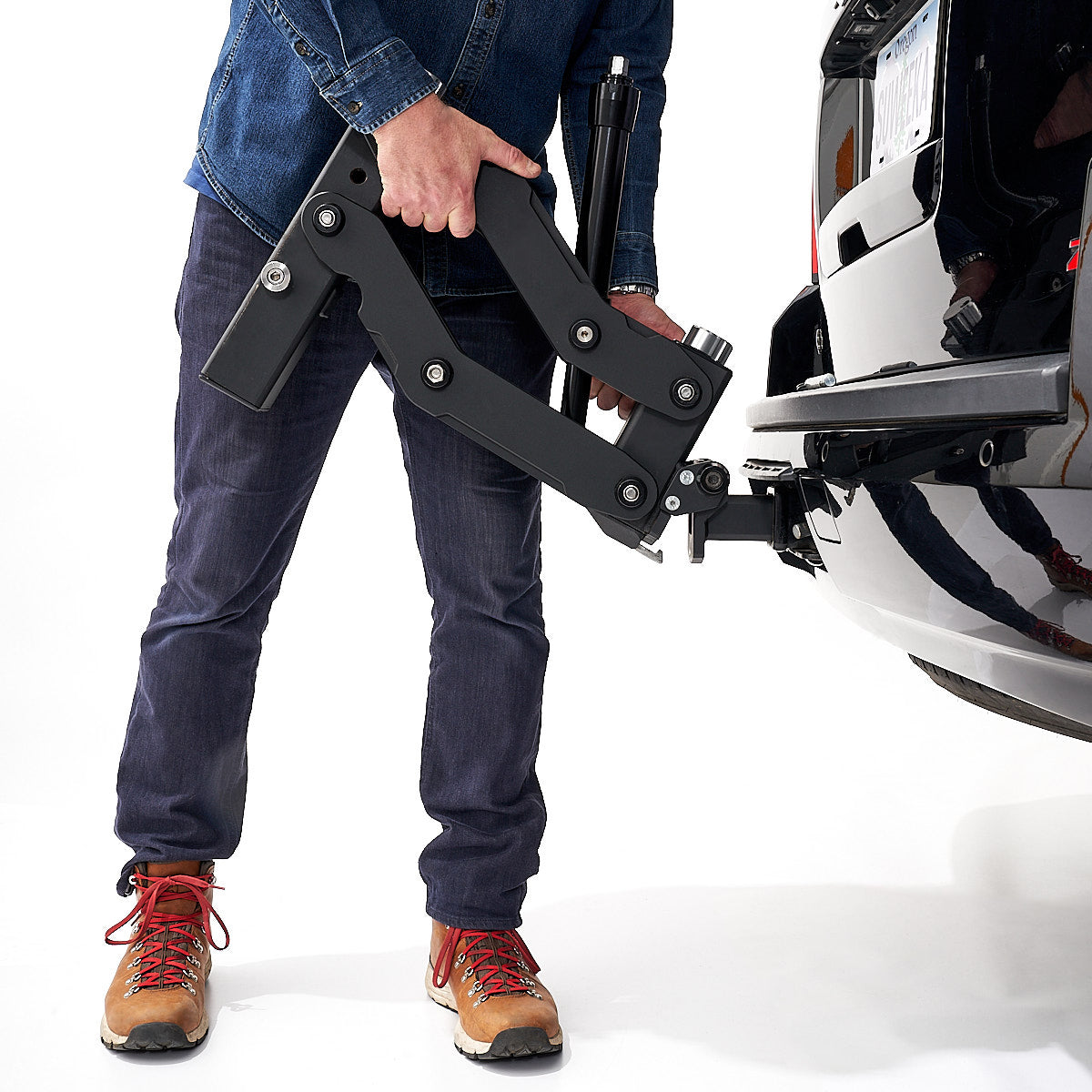

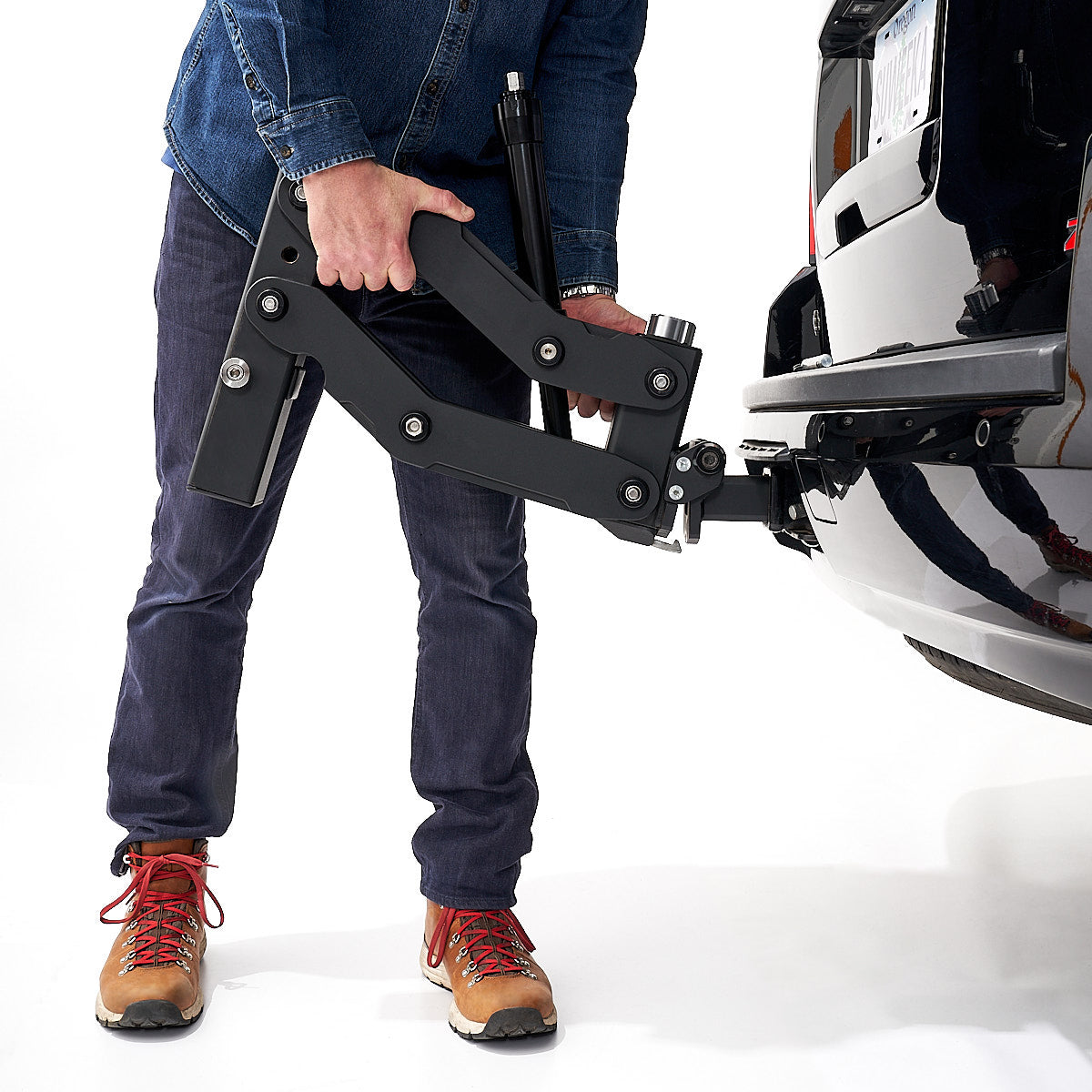

Man using the Quick Connect Hitch Cleat to remove the rack from the hitch easily

Installing, (and removing) a rack has never been this easy

Attach and detach your Bike Lifter with our Patent Pending Quick Connect Hitch. Perfect for starting your adventure quickly, and effortless removal when you're done.
