Made in the USA

The Trike Lifter with Three Wheel Trays

$2,250.00

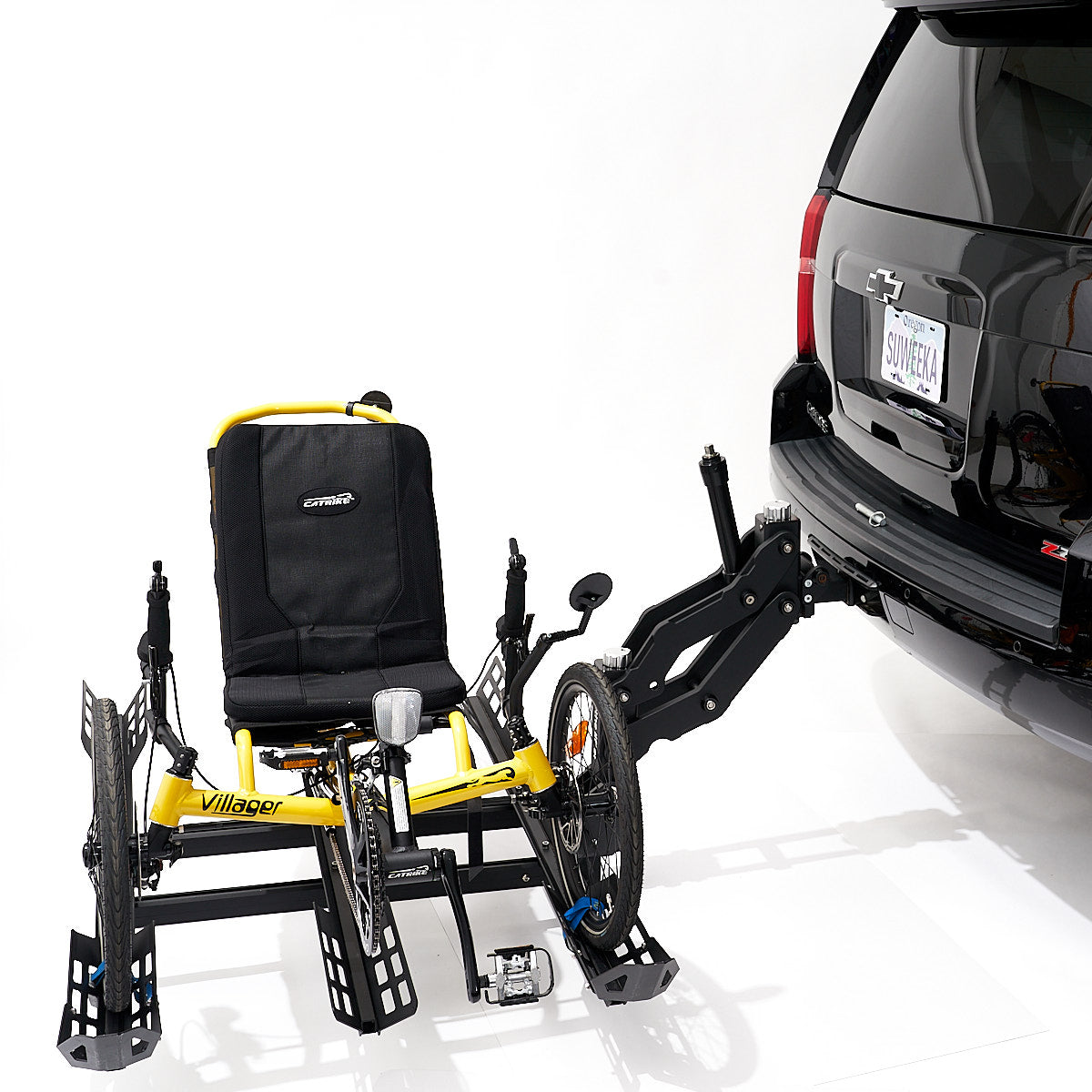

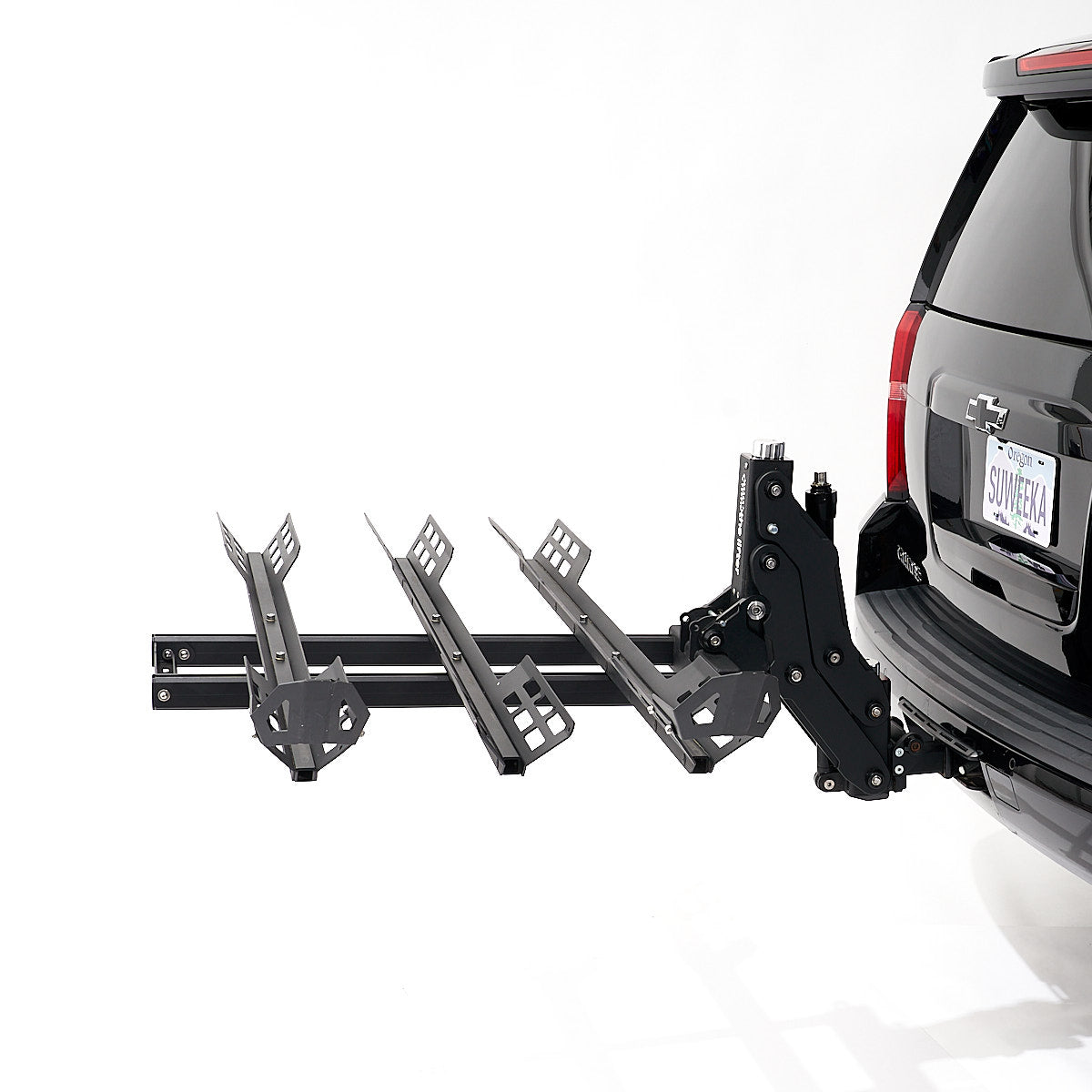

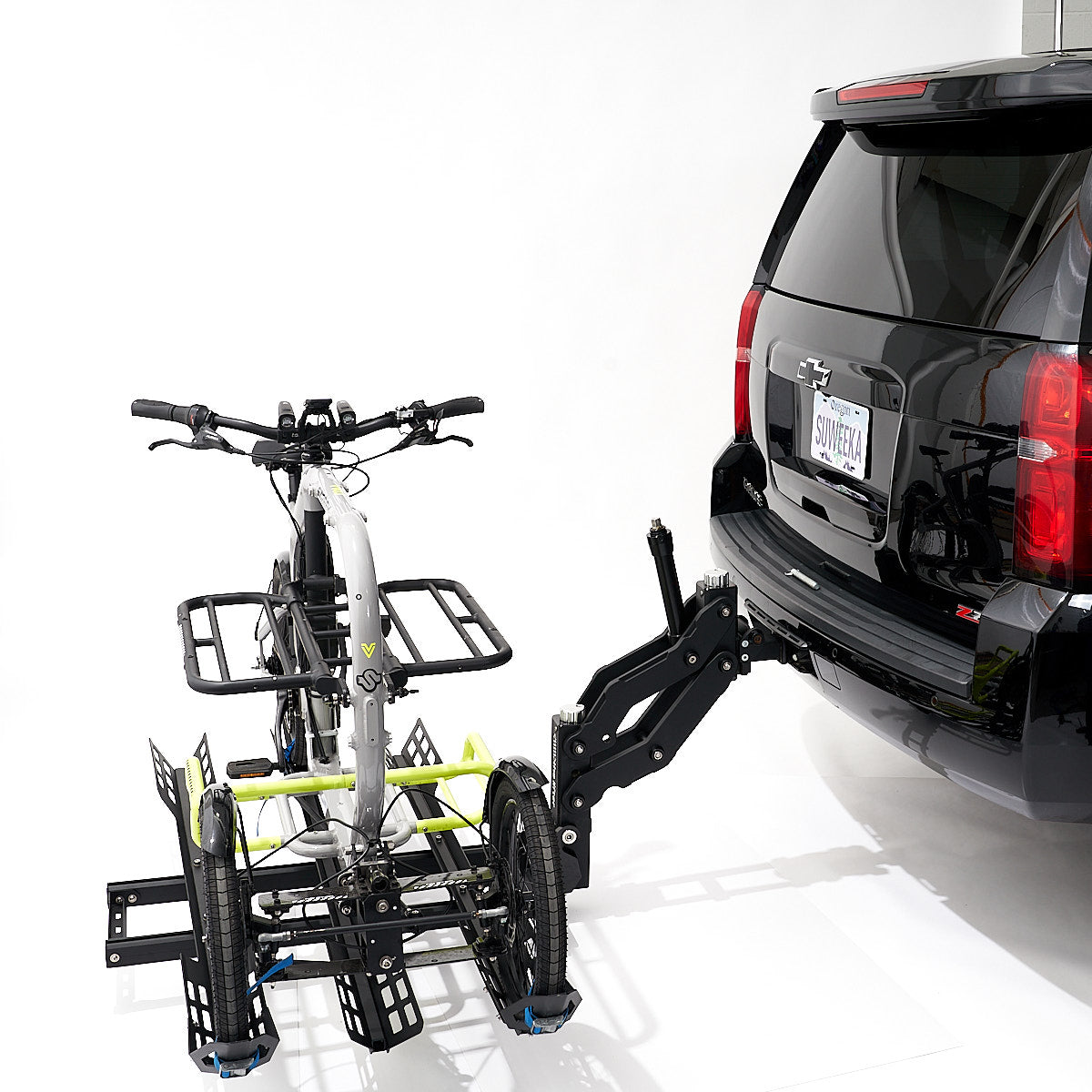

The ultimate Trike rack with a 240 pound capacity, smooth raise/lower functionality, triple wheel trays, and hassle-free installation. With the Suweeka Lifter you can roll your trike onto the trays while they sit at ground level, fasten your wheel straps, and then using your user supplied power drill, wrench or ratchet and socket, raise the Lifter into transit mode.

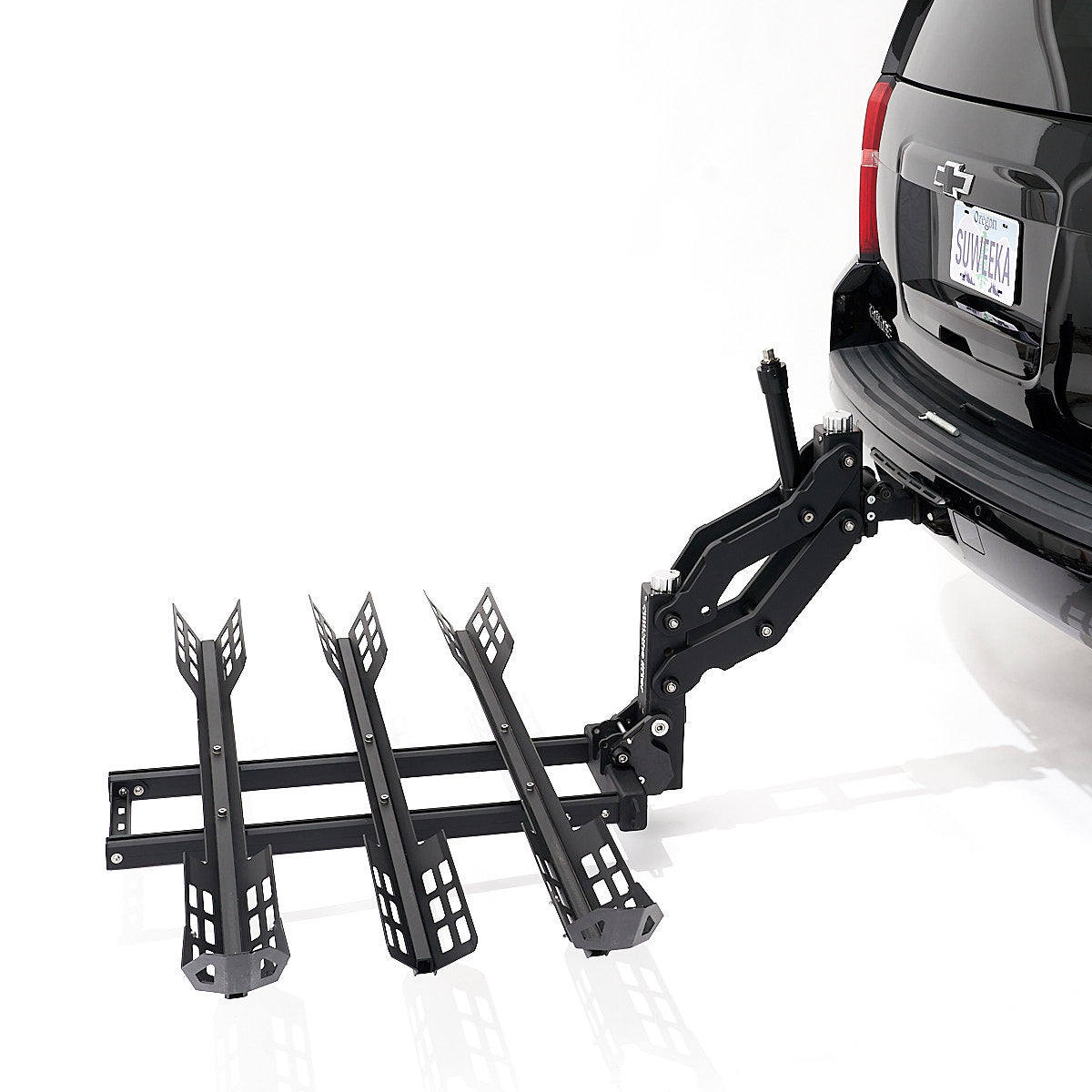

Our triple Wheel Trays will accommodate Trikes with axle to axle measurement of up to 61 inches, please check your manufacturers website for dimensions on your specific Trike.

The Carriage on our Trike Lifter has longer arms, allowing for the three Wheel Trays to be adjusted to accommodate Trikes up to 30 inches wide (at the tires), again please check your manufacturers website for dimensions on your specific Trike.

When ordering your Suweeka lifter, we will need to know the length of quick connect hitch cleat you will need.

We need the length/distance, from the face of your vehicles 2 inch receiver to the trailing edge of your bumper, or spare tire if you are driving a vehicle with a rear door mounted spare tire. If you are planning on using a hitch reducer or hitch adaptor, please take your measurements with those items in place.

Less than 0 inches or receiver sticks out past the bumper - order a 4 inch version.

0 - 2 Inches, order a 6 inch version

2 - 3 inches, order an 8 inch version

3 - 4 inches, order a 10 inch version

Over 4 inches, order a 12 inch version

Quick Connect Hitch Cleat:

4 inch

Variant

Warranty & Returns

Return shipping costs are non-refundable and deducted from product refunds. Lifetime Warranty: Suweeka products are built to last a lifetime, with replacement parts available for consumables.

Shipping

We ship to the contiguous lower 48 states, and the District of Columbia via UPS. Customers in Hawaii and Alaska should contact us to arrange shipping.

The Trike Lifter with Three Wheel Trays

$2,250.00

120 LBS per tray, up to 2 trays

2" Hitch Receiver, can be used with Cars, Trucks & RVs

Adaptable to secure to most frames

Up to 5” in width, 29” & 700cc in diameter

E-Bike Rack for Effortless and Secure Transit

Say goodbye to the struggle of lifting heavy bikes and managing bulky rack setups. Our modular design accommodates most E-bike frames, providing a customizable and secure hold. Easy installation, removal, and storage means more time on the trails.

Includes

The Lifter
Quick Connect Hitch Cleat
Hitch Pin, Lifter Pin and Carriage Pin
Keys x2
Wheel Trays x3
Socket Adaptor
RollerCam Wheel Straps x3

Features

Two-piece design for easier lifting, installation and storage
240 pound capacity
Mechanical lifting with hand crank or ¾ inch socket adaptor and drill

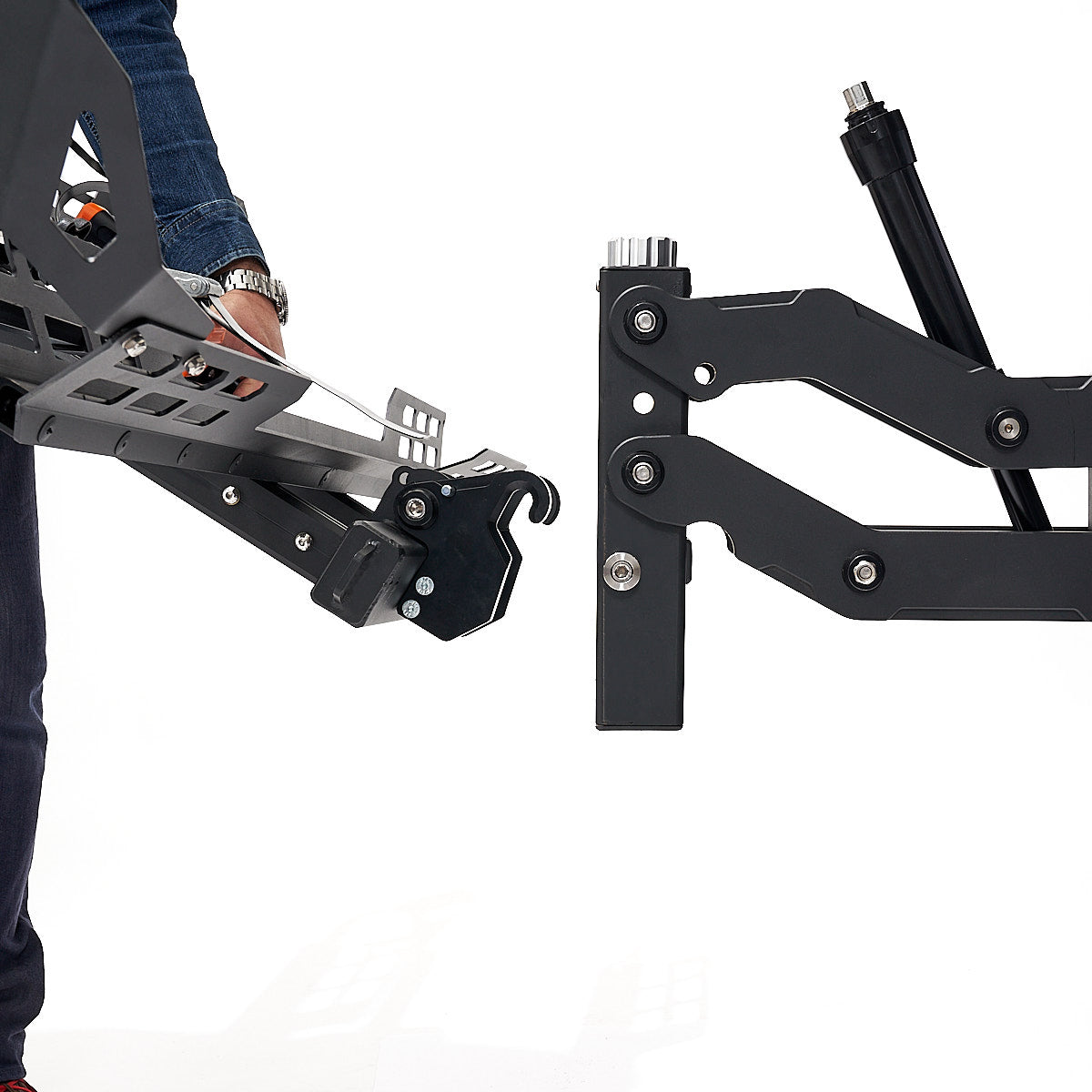

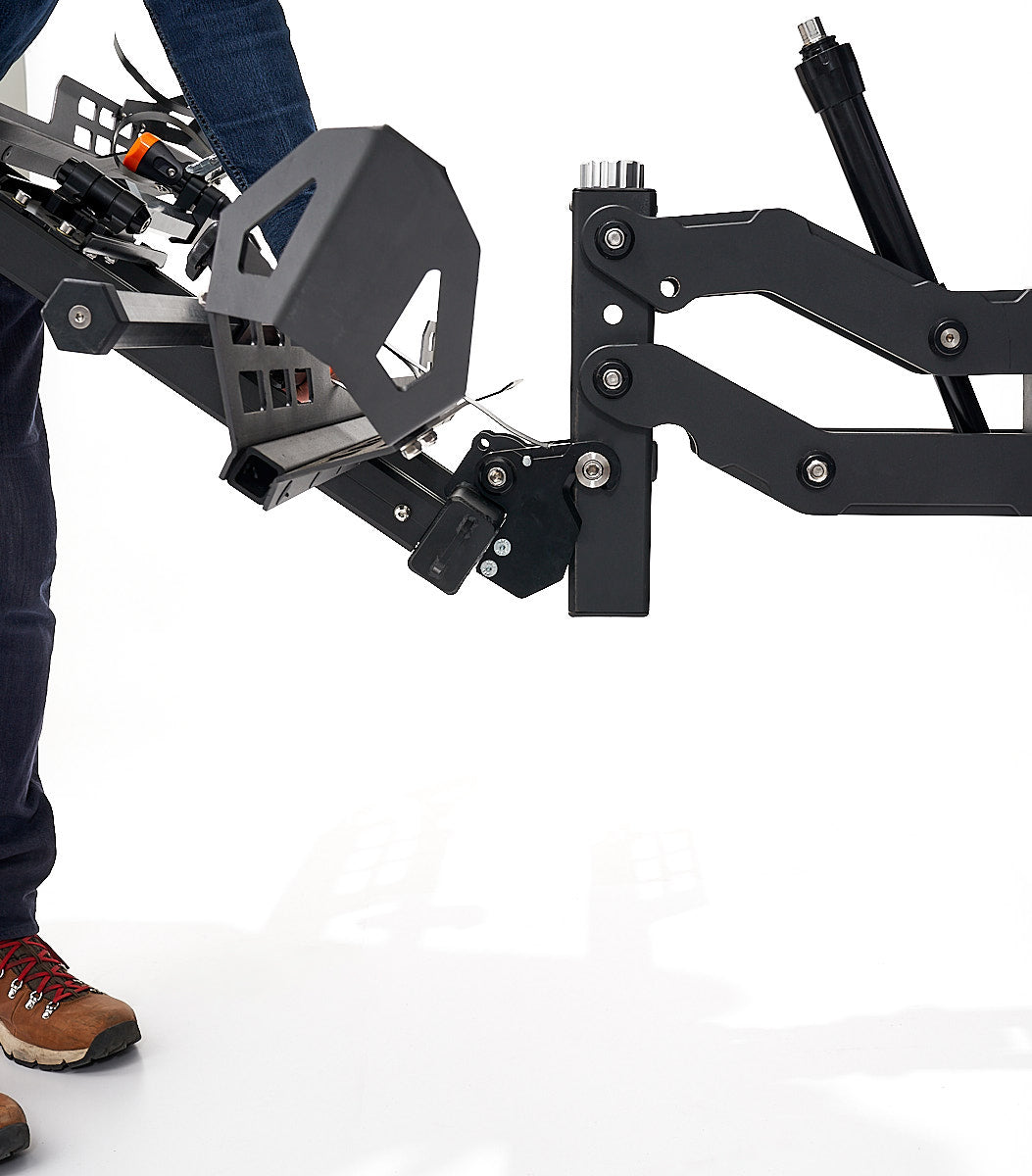

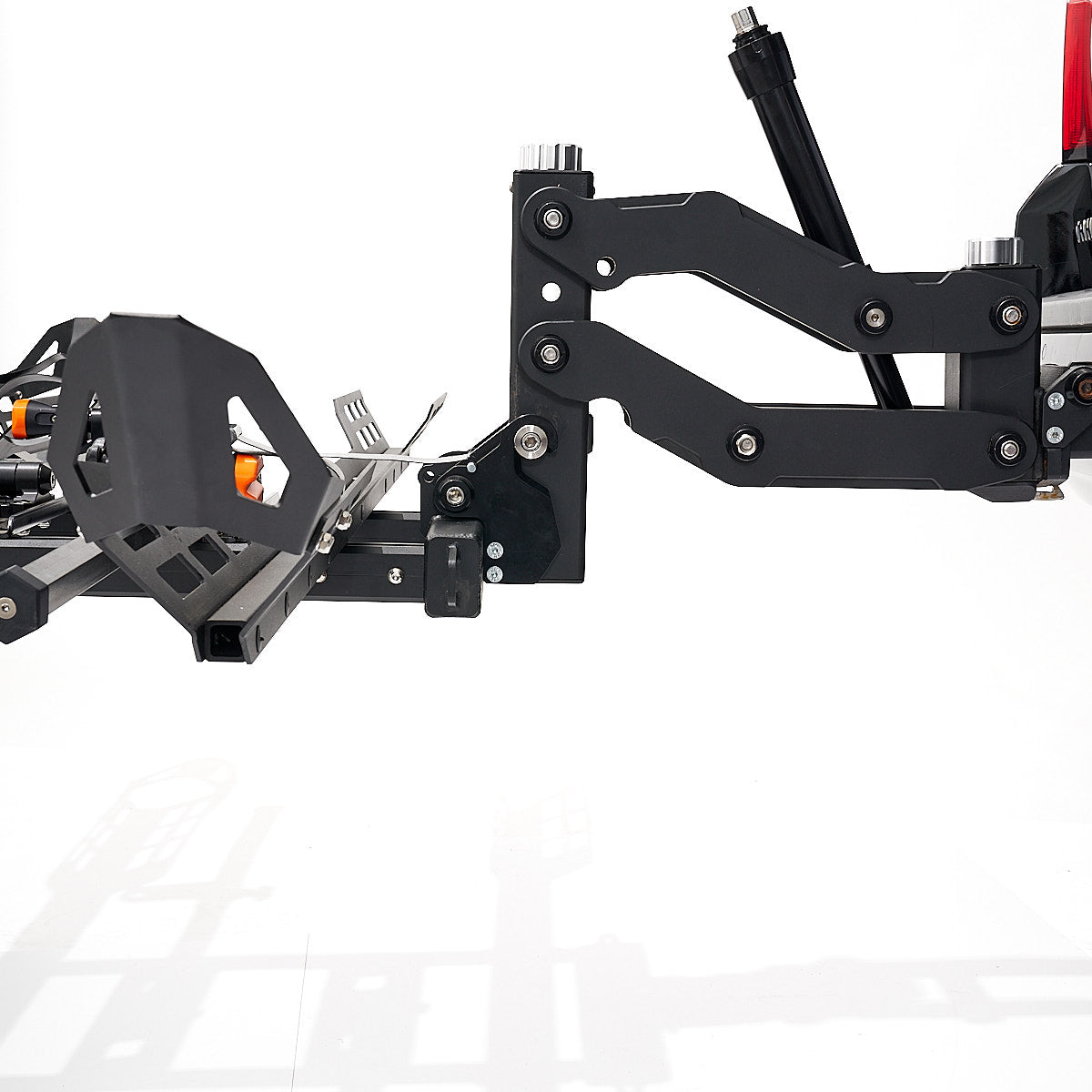

Quick connect separates Carriage from The Lifter quickly
Carriage arms feature channels for versatile and DIY accessory mounting
Securely locks to your vehicle, additional security can be attained with user provided cable and U-Lock

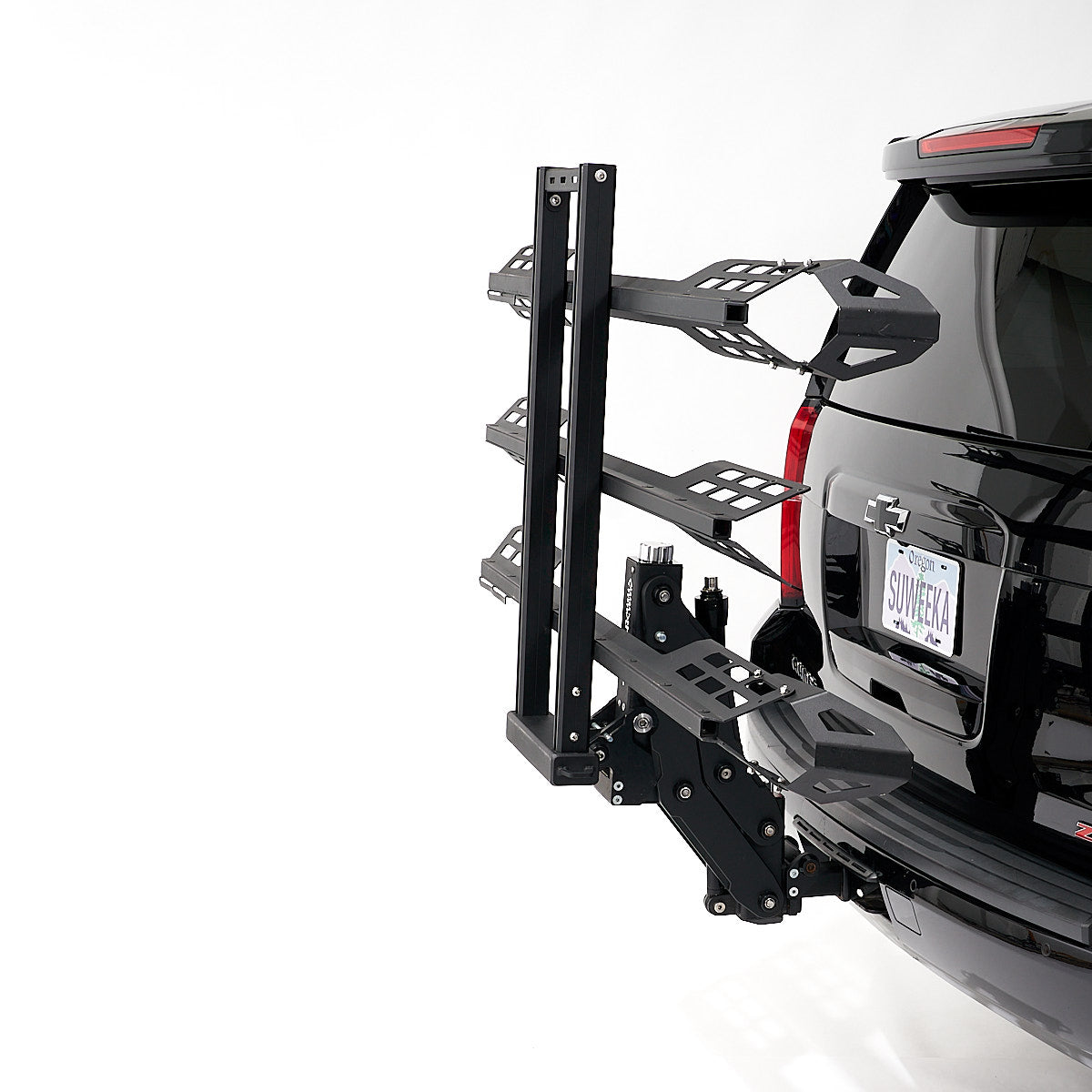

Folds when not in use, by pulling the release pin and lifting the rack locks into position at 90°

Specifications

Load Capacity	240 pounds
Max Bike Weight	120 pounds
Max Number of Bikes	2
Hitch Receiver Size	2 inches
Lifter Drop	20 inches
Lifter Rise	Roughly 7 inches above the bottom of your receiver
Total Rack Weight	85 pounds
Lifter Weight	43 pounds
Two Bike Mounts Weight	42 pounds
Materials	Anodized Billet Aluminum, Powder Coated Steel, Stainless Steel
Deployed and in Transit Position Dimensions	40 inches deep x 67 inches wide 41 inches bottom of receiver to top of carriage arms
Folded Dimensions	17 inches deep x 67 inches wide 39 inches bottom of receiver to top of carriage arms
Approved for RV	Yes, Class A, B and C
Max Wheel Base	58 inches
Max Tire Width	5 inches
Max Wheel Size	29 inches & 700cc

The Lifter
Quick Connect Hitch Cleat
Hitch Pin, Lifter Pin and Carriage Pin
Keys x2
Wheel Trays x3
Socket Adaptor
RollerCam Wheel Straps x3

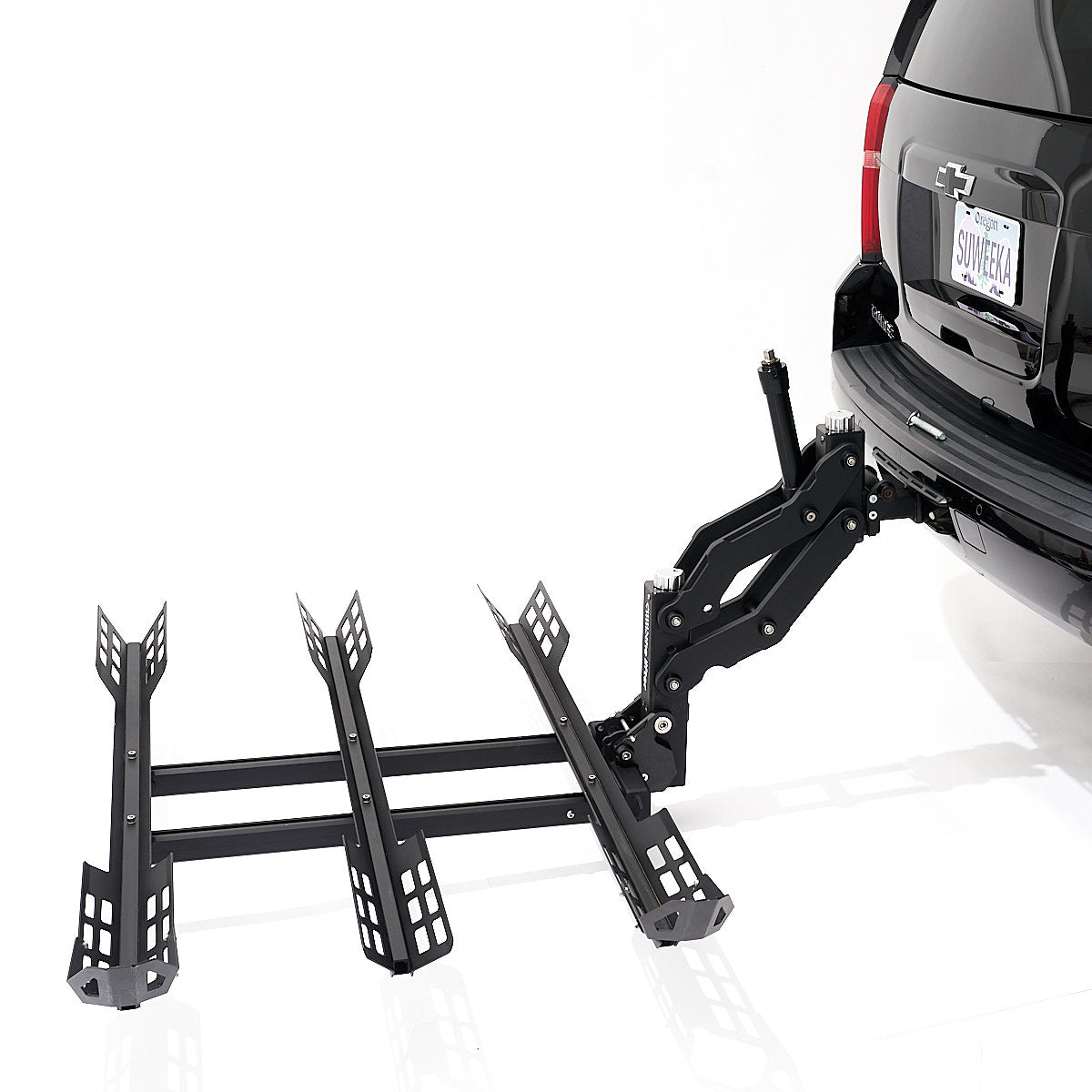

The Lifter rack lowered to the ground, with bike ready to roll off

Raises and lowers 240 pounds, so you don't have to

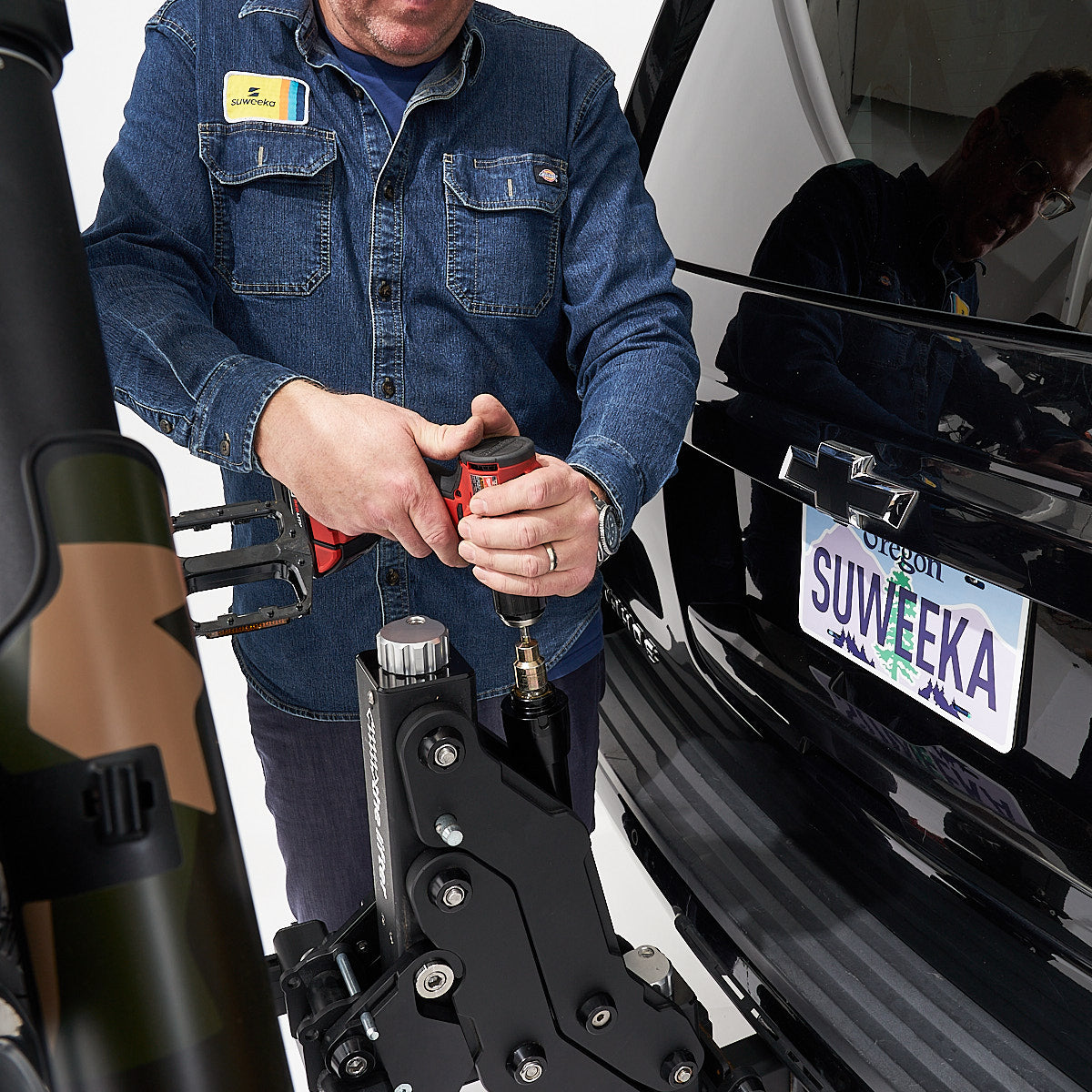

Use your power drill or the hand crank provided to use the mechanical lifting. Our bike tray sits flat on the ground for most vehicles, enabling effortless rolling on and off.

Two heavy e-Bikes lowered to the ground on The Lifter rack

A customizable fit to secure most E-bike frames

A modular design made to adjust to a wide variety of frames. Including bikes with front or rear baskets, fenders, backrests, running boards, wheel skirts, and fat tires.

Man using the Quick Connect Hitch Cleat to remove the rack from the hitch easily

Installing, (and removing) a rack has never been this easy

Attach and detach your Bike Lifter with our Patent Pending Quick Connect Hitch. Perfect for starting your adventure quickly, and effortless removal when you're done.
